TL;DR
Generative AI architecture is the design of the whole system around a model, from the moment a request arrives to the moment an answer goes out. Every design shares the same building blocks, such as identity checks, context assembly, model access, output checks and tracing. Most enterprise work fits one of four patterns, which are prompt-only, retrieval-augmented generation (RAG), fine-tuned models and agents. RAG brings in private or changing knowledge, fine-tuning fixes how the model behaves, and agents let the system take actions. The right choice is the simplest pattern that passes a test on real requests. Move up to a more complex pattern only when that test shows a gap it would close.
Key Takeaways Generative AI architecture covers the full request path, and the model is only one block in it. Every pattern shares a five-stage lifecycle of entry, context assembly, model call, output checks and tracing. Prompt-only fits tasks where the user supplies everything the model needs to answer. RAG fits answers that depend on private or changing documents, and it succeeds or fails on permissions and source quality. Fine-tuning changes behavior and format rather than knowledge, while agents add actions that need approval gates. Pick the simplest pattern that passes your evaluation set, and climb a level only when a measured failure calls for it. Watch on YouTube
Can LLM Gateways Make Enterprise AI Safer?
Kanerika explains how a gateway in front of every model call centralizes identity, quotas and logging, the entry stage that every generative AI pattern depends on.
Same Model, Two Teams, Two Different Endings Picture two teams in the same company, each handed the same model and the same quarter to build an internal assistant. The first team wires a chat window straight to the model API and has a polished demo inside two weeks. The second team spends those weeks on duller questions.
Who can see which documents? What happens when the model times out? How will anyone know if the answers get worse?
Six months later, the first assistant is still a pilot, stuck in a security review it cannot pass. The second is in production, answering questions for the whole service desk. Both teams used the same model, so the difference came down to the generative AI architecture each one built around it.
What Is Generative AI Architecture? Generative AI architecture is the design of everything that happens between a user’s request and the model’s answer. It decides where the request enters, which context the model sees, which model runs, how the output is checked, and what gets logged. In short, it is the system that turns a generative AI model into something people can rely on at work.
It helps to think of it as the gap between a model and a product. A model turns text into more text. A product has to know who is asking, use the right company data, refuse what it should refuse, and keep working when a dependency fails.
The term covers the system, not the neural network inside the model. If you want the model internals, such as attention, tokens and context windows, our guide to LLM architecture explains them. This article stays one level up, at the system you build around the model and the pattern you choose for it.
How It Differs From Traditional Application Architecture Traditional software is deterministic. The same input gives the same output, so you test it once and trust it after that. A generative model is probabilistic, so the same question can return different wording, a different structure or, now and then, a confident wrong answer.
That one difference reshapes the design.
You need a step that assembles context before the call, because the model only knows what the prompt tells it. You also need a step that checks the output after the call, because nothing guarantees the response is safe, grounded or in the right format.
Testing changes as well. A unit test asks whether the output equals an expected value, while a generative system needs graded tests over many sample requests. Those tests run again whenever a prompt, model or data source changes. That is why an LLM evaluation framework belongs in the design from the first week.
Why the Model Is the Smallest Box in the Diagram When you draw a production generative AI system, the model ends up as one box among many. Around it sit identity checks, prompt templates, retrieval, tool connectors, output filters and tracing. When a project stalls, the cause usually sits in one of those surrounding boxes rather than in the model.
The model box still carries one real choice, which is the family of model you call. Text and code generation run on transformer models, the design introduced in the 2017 paper Attention Is All You Need . Image generation, on the other hand, leans on diffusion models, as our comparison of diffusion models and LLMs explains. Older designs such as GANs and variational autoencoders still survive in niche image and data-synthesis work.
For architecture purposes, treat the model as a replaceable part behind a stable interface. Teams that hard-wire one model into every layer struggle later, when a cheaper or better model appears and swapping it means rewriting half the application.
Kanerika Service
Generative AI Development Services
Kanerika designs and builds generative AI systems around a clear request contract, from prompt-only assistants to RAG and agentic workflows, with identity, checks and tracing in place from day one.

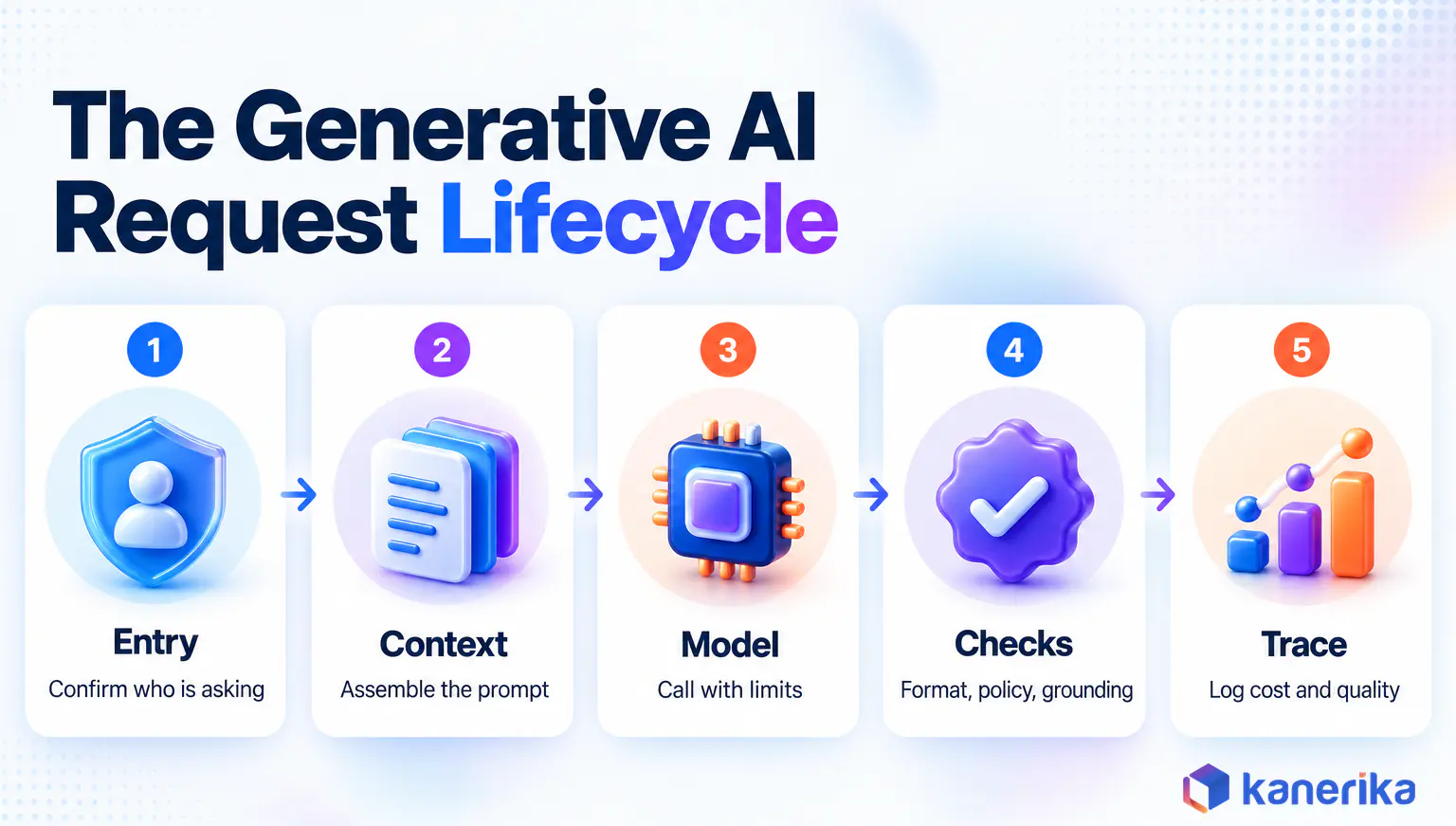

Explore Generative AI Services The Generative AI Request Lifecycle in Five Stages Every generative AI request passes through the same five stages, whatever the pattern. The patterns differ mainly in what happens inside stages two and three, so it pays to learn the lifecycle first. The running example here is an IT service desk assistant that employees ask for help with laptops, access and software.
Stage 1: Entry and Identity The request arrives through a chat window, a ticketing tool or an API call. Before anything else, the system confirms who is asking and what that person may see or do. That identity then travels with the request through every later stage, which matters most once retrieval and tools enter the picture.
Rate limits and spending caps also live here.
A single runaway script can burn a month of model budget in an afternoon, so the entry point is the cheapest place to stop it. Many teams put an LLM gateway at this point to keep keys, quotas and logging in one place.
Stage 2: Context Assembly Next, the system builds the prompt the model will actually see. That prompt combines fixed instructions, the user’s question, recent conversation history, and any extra context the pattern allows, such as retrieved articles or tool results.
In practice, this stage decides answer quality more than any other. A strong model with the wrong context gives a fluent wrong answer, while a modest model with the right context often does well. The practice now goes by the name context engineering , and it has become a bigger lever than clever prompt wording.
Stage 3: Model Invocation Then the assembled prompt goes to a model endpoint along with its settings, such as temperature and maximum output length. For agents, it also carries the list of tools the model may request. A router may choose between models at this point. Simple requests go to a small, cheap model, and harder ones go to a larger model.
Timeouts and retries belong to this stage too. Model APIs slow down and fail like any other service. So every call needs a time limit, and a plan for what happens when that limit runs out.
Stage 4: Output Checks The raw output is not ready for the user yet. First, checks confirm that it follows the expected format, leaks no sensitive data, and stays inside policy. In a RAG system, a grounding check also confirms that each claim traces back to a retrieved source.
When a check fails, the system needs a planned response. It can retry with a corrected prompt, return a polite refusal, or pass the request to a person.
Checklist
Generative AI Checklist for Secure Adoption and Governance
A practical checklist covering data access, permissions, output controls, monitoring and governance to review before a generative AI system goes live.
Get the Checklist → Stage 5: Trace and Feedback Finally, the system records what happened, including the prompt, the model version, the sources used, the tokens spent and the time taken. Without that trace, nobody can explain a bad answer or spot costs creeping up. User feedback, even a simple thumbs-up or thumbs-down, joins the same record and feeds the next round of testing.
Before any code is written, a request contract keeps all five stages honest. A short contract for the service desk assistant might look like the example below, with illustrative values your team would replace with its own.
assistant: it-service-desk
pattern: rag # prompt-only | rag | fine-tuned | agentic
inputs:
user_identity: required # single sign-on token
question: free text, max 2000 characters
context_allowed:
- help_articles # filtered by the user's groups
- ticket_history # the user's own tickets only
actions_allowed: none
output:
format: answer with cited article links
refuse_when: no source supports the answer
quality_bar:
eval_set: 300 real past questions
grounded_answers_min: 0.90
p95_latency_seconds: 6
on_failure: offer to open a ticket for a human agentEach line in that contract maps to a stage of the lifecycle. Change the pattern line and you change which context and actions are allowed, and that decision is what the rest of this guide is about.
Seven Building Blocks Every Generative AI System Shares The five stages run on a small set of components. Some appear in every design, while others show up only once a pattern needs them. Table 1 lists each block next to the patterns that require it.
Table 1: The Seven Building Blocks and the Patterns That Need Them
Building block What it does Needed by Application interface and API Receives requests and returns answers to people or other systems All four patterns Orchestration and routing Runs the steps in order, picks a model, handles retries and fallbacks All four, thin in prompt-only and central in agentic Prompt and context management Stores versioned instructions and templates, assembles context and history All four patterns Model access and inference Calls a hosted or self-run model with the right settings and limits All four patterns Knowledge connections Finds approved documents or records for each request, filtered by permission RAG, and most agentic systems Tool and system connections Lets the model read from or write to business systems through approved APIs Agentic Safety, evaluation and observability Checks inputs and outputs, scores quality, records traces and cost All four patterns
Three Blocks Where Designs Go Wrong Three of these blocks deserve a closer look, because they are where designs most often go wrong. Prompt and context management tends to begin life as strings pasted into application code, which turns every wording change into a full deployment. Treat prompts as versioned configuration with their own tests instead.
Knowledge connections look simple on a whiteboard and turn out to be the hardest part of many projects. The connector has to respect the same permissions as the source system. If it does not, anyone with chat access can read what the source system would have hidden from them.
Tool connections increasingly follow a shared standard. The Model Context Protocol describes itself as an open-source standard for connecting AI applications to external systems. As a result, each new tool needs far less custom glue.
Kanerika’s explainer on how MCP works covers the details.
Looking for product names to fill each block? Our generative AI tech stack guide lists the tools. For the wider company picture, including data platforms and governance layers, the enterprise AI architecture reference goes layer by layer.
AI Assessment
Is Your Organization Ready for Production Generative AI?
Score your data, governance and delivery readiness in a few minutes with Kanerika’s AI maturity assessment, and see which architecture patterns you can support today.
Start Your AI Assessment → Pattern 1: Prompt-Only Architecture Prompt-only is the simplest generative AI architecture, and it handles more work than people expect. The application simply sends instructions plus whatever the user supplied straight to the model, then checks the output and returns it. There is no retrieval step, no tool use and no custom model.
How a Prompt-Only Request Flows In the service desk example, an agent pastes a long ticket thread and asks for a handover summary. The request moves from the user to the application, through a prompt template, to the model, through format checks, and back again. Everything the model needs is already inside the request.
Even so, a small design still needs the full lifecycle. Identity, output checks and tracing do not disappear because there are fewer boxes. Sound prompt engineering practices do most of the quality work here, along with a handful of worked examples placed inside the template.
Where Prompt-Only Fits and Where It Breaks This pattern fits drafting, summarizing supplied text, rewriting, translation, and pulling fields out of a document the user provides. It is also cheap, quick to build and easy to test, because the right answer depends only on the input.
It breaks the moment the answer depends on information the user did not supply.
For example, ask the same assistant about the company’s VPN policy. It will either refuse or guess from training data that may be wrong or out of date. That guessing is where LLM hallucination does real damage, and it is the signal to consider retrieval.
Pattern 2: Retrieval-Augmented Generation (RAG) Architecture Retrieval-augmented generation adds a search step before the model call. The system finds approved documents that match the question and places them in the prompt. Because of that, the model answers from your content instead of its memory.
The idea was named in a 2020 paper by Patrick Lewis and colleagues , and it is now the usual starting point for company knowledge assistants.
Two Paths: Preparing Knowledge and Answering Requests A RAG system runs two separate paths. The preparation path works in the background, pulling documents from source systems, cleaning them and indexing them for search. The request path runs live, turning each question into a search, filtering results by the user’s permissions, and passing the best passages to the model.
That split has practical consequences. The preparation path decides freshness, since an article updated this morning is invisible until it is re-indexed. The request path decides speed, because every search adds time before the model even starts writing.
For the detail inside each path, from chunking to reranking, see the RAG internals covered in our retrieval-augmented generation guide . Teams turning a prototype into a product with sign-in, citations and feedback buttons will get more from the guide to building a RAG application .
Where RAG Fits and Where It Breaks RAG fits any question whose answer lives in documents or records that change, or that the model never saw in training. Internal policy questions, product manuals, contract lookups and the service desk’s how-to articles all belong here.
When RAG fails, though, it is mostly a retrieval failure. The right document is missing, out of date, or ranked below a worse one, and the model answers fluently from the wrong passage. The other big failure is permissions, because an index that ignores access rules will happily show salary data to anyone who asks.
Search technology is only one part of that picture, and our vector database comparison covers the storage choice. In most projects, though, clean sources and correct permissions matter more than which index product sits underneath.
Case Study
80% Faster Resume Screening With Semantic Search
An IT solutions provider replaced keyword search with a retrieval-first resume intelligence platform built on a vector database, cutting screening time by 80% and making candidate shortlisting 45% faster.
Read the Case Study → Pattern 3: Fine-Tuned Model Architecture Fine-tuning changes the model itself.
You train an existing model further on examples of the exact behavior you want, then serve that adapted version instead of the base model. Microsoft’s Foundry fine-tuning guide describes this as adjusting the model’s weights rather than adding examples to each prompt.
The Training Path and the Serving Path In architecture terms, fine-tuning adds a second system that runs offline. First, approved training examples flow into a training job. Then the resulting model is scored against a held-out test set, and only a model that beats the current one gets promoted. Methods such as LoRA keep this affordable, as our guide to parameter-efficient fine-tuning explains.
Once promoted, the model is served on a path that looks almost like prompt-only, except that the endpoint points at your own model version. That version needs the same care as any software release, with a registry, a change log, regression tests and a fast way to roll back.
Teams often forget the ongoing cost. A fine-tuned model has to be retrained or re-validated whenever its base model is retired. Unfortunately, that can happen on the provider’s schedule rather than yours.
Where Fine-Tuning Fits and Why RAG Is Still Needed Fine-tuning fits behavior problems. In the service desk example, sorting incoming tickets into the company’s own categories in a strict JSON format is a good candidate. It becomes worth trying once prompt-only accuracy has stalled after several honest rounds of prompt work.
Knowledge problems are different, however. Microsoft’s guide says plainly that fine-tuning adds training and hosting costs and does not replace retrieval for current information or application-level safety controls. So when a task needs both a fixed behavior and fresh facts, the answer is a fine-tuned model inside a RAG flow. Our comparison of RAG vs fine-tuning walks through that trade-off.
Pattern 4: Agentic Architecture An agentic architecture lets the model decide what to do next. Instead of one call that returns an answer, the system runs a loop. In each pass, the model picks a tool, reads the result, and decides whether the task is done.
That loop is what lets an assistant reset a user’s sign-in device instead of only explaining how.

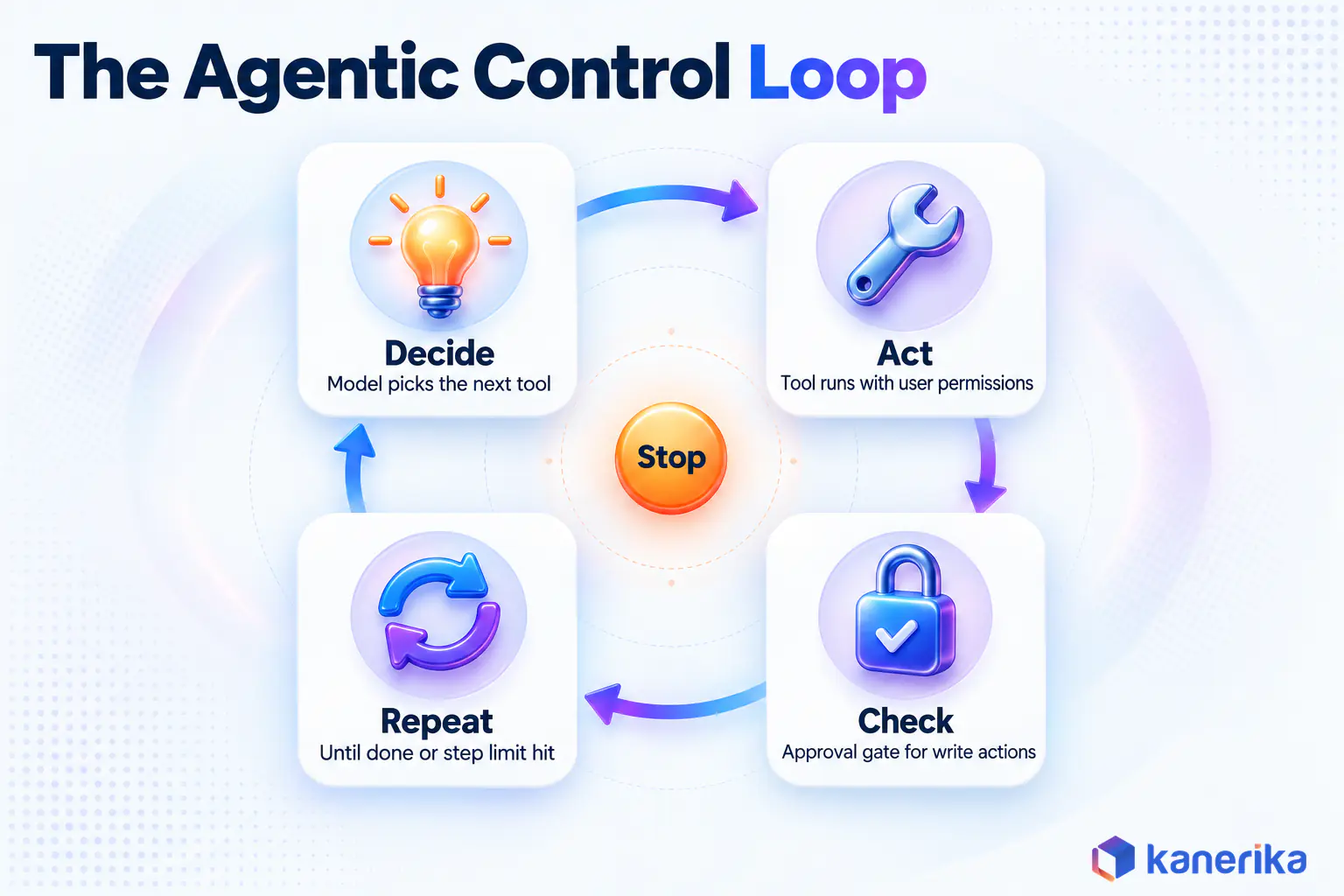

The Control Loop: Decide, Act, Check, Repeat Anthropic draws a useful line between two designs in its guide to building effective agents . Workflows run models and tools through predefined code paths, while agents let the model direct its own process and tool use. Plenty of systems sold as agents are really workflows, and that is often the safer choice.
Either way, the loop needs state, meaning a record of what has been tried, what each tool returned and how many steps remain. It also needs hard limits on steps, time and spend, because a loop with no ceiling can call the same tool over and over. Without those limits, one confused request can run up a large bill before anyone notices.
Approval Gates and Action Boundaries Agents are the first pattern that can change something in the real world, and the architecture has to reflect that. Read-only tools, such as checking which groups a user belongs to, can usually run freely because they change nothing. Write actions, such as resetting credentials or approving a refund, should pass through an approval gate where a person confirms the step.
Each tool also needs its own narrow permissions, especially when the agent acts on behalf of a named user. An agent running on an all-powerful service account turns one bad instruction into a security incident.
Where Agents Fit and Where They Break Agents fit multi-step work that crosses systems, particularly when it cannot be scripted in advance. Investigating an incident, assembling a vendor review and screening a case against a rulebook are good examples. They do not fit single-step questions, where a fixed workflow does the same job for less money and is far easier to test.
The cost of getting this wrong is already visible. In June 2025, Gartner predicted that over 40% of agentic AI projects will be canceled by the end of 2027 because of escalating costs, unclear business value or inadequate risk controls. For the layer-by-layer design of an agent itself, see our guide to AI agent architecture .
One Service Desk, Four Architectures, Side by Side Lining up the four patterns against one use case makes the trade-offs concrete. Table 2 follows the IT service desk assistant through each design and shows what changes from one to the next.
Table 2: The Same Service Desk Assistant Built Four Ways
Factor Prompt-only RAG Fine-tuned Agentic Example task Summarize a pasted ticket thread Answer a VPN setup question from help articles Sort tickets into company categories in strict JSON Check entitlements and reset a sign-in device after approval Components added None beyond the base lifecycle Index, retriever, permission filter, grounding check Training pipeline, model registry, evaluation gate Tool registry, state store, approval gate, step limits Model calls per request A single call Search, then a single call A single call Several, and the number varies First thing to break Facts the user did not supply A wrong or stale document retrieved Drift when the categories change The wrong tool, or the same tool called repeatedly What you evaluate Output quality on sample inputs Retrieval hit rate and grounded answers Accuracy on a held-out set Task completion and correct actions Change shipped most often The prompt template The indexed content A new model version Tool definitions and policies
Read across the row for the first thing to break before you choose. Each pattern trades one failure for another, so the real question is which failure your use case can live with and detect quickly.
Case Study
3x Faster Expert Vetting With an AI Compliance Agent
A global expert network moved analysts from research to review with an agent that gathers findings, maps them to compliance rules and cites every source, cutting backlog cases by 70%.

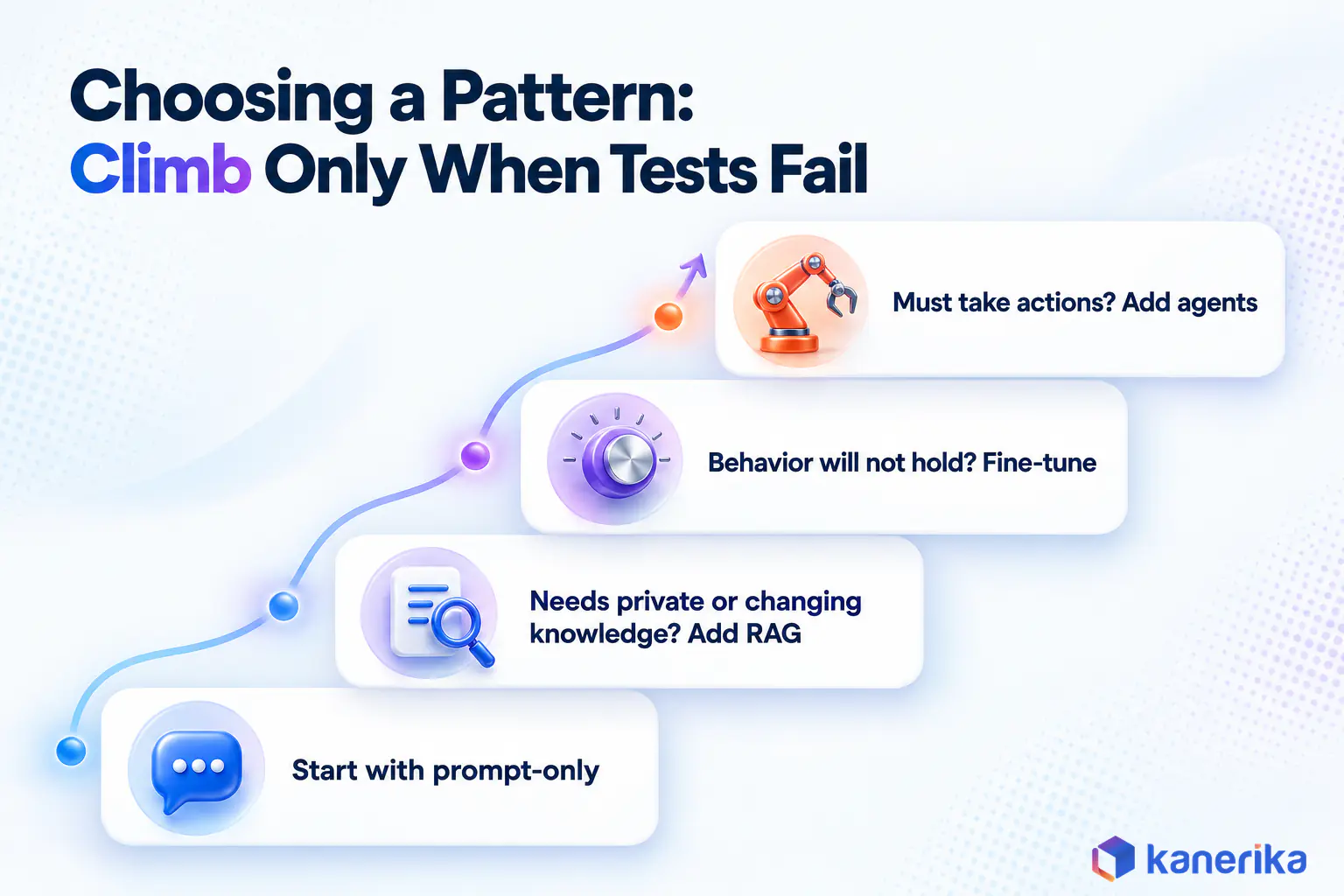

Read the Case Study → How to Choose a Generative AI Architecture Pattern The safest way to choose is to climb a ladder rather than jump to a rung. Start with prompt-only and measure it against a set of real requests. Then move up only when the numbers show a gap the next pattern would close.
Anthropic’s guidance makes the same point, recommending the simplest solution possible and extra complexity only when it is needed.
Does the Answer Depend on Private or Changing Knowledge? If correct answers need documents, records or facts the model cannot know, add retrieval. This is the most common reason to move past prompt-only, and in most companies it is the first step up the ladder.
A quick test helps here. Could a smart new hire answer the question without opening any company system? If not, the model cannot answer it reliably either.
Does the Output Need Behavior That Prompts Cannot Hold? If the model knows enough but keeps getting the format, tone or classification wrong after real prompt work, fine-tuning becomes worth evaluating. The trigger should be a measured accuracy plateau on your test set, not a hunch that a custom model would feel more serious.
Does the System Have to Act, Not Just Answer? If the job ends with a change in another system, the design needs tool access. Even then, check whether a fixed workflow would do the job, with the model handling only the language parts. Full agent autonomy is warranted only when the steps genuinely cannot be known in advance.
Routing One Assistant Across Several Patterns Production systems often run several patterns behind one chat window, and the piece that makes this work is the router at stage three. It reads each request, decides which path it needs, and sends it there. A how-to question takes the RAG path, while a reset request takes the agent path with its approval gate.
Because the router is itself a classifier, it needs its own test set of real requests labelled with the correct path. A misroute should also be logged as its own failure type.
Combining follows the same rule as choosing: each added pattern should fix a measured problem and carry its own test set. Agentic RAG is a good example of a combination worth understanding well before you build one.
Where the Model Runs and What Multimodal Inputs Change The pattern also shapes where the model can run and what kinds of input the system accepts. Both choices show up later in the bill and in the security review.
API, Managed Platform, or Self-Hosted A hosted API is the fastest start and suits prompt-only and RAG well, since nothing about the model itself is custom. Managed cloud platforms add private networking, regional data residency and fine-tuning support inside your own cloud account. Cloud providers publish worked designs for this route, such as Microsoft’s baseline Foundry chat reference architecture and Google Cloud’s generative AI architecture guides .
Self-hosting an open-weight model, by comparison, gives the most control over data and cost at scale, at the price of running GPU infrastructure yourself. It tends to make sense for regulated data, very high volumes, or fine-tuned models you need to own outright. Our guide to private LLMs covers that route in more detail.
What Changes When Inputs Are Images, Audio, or Scanned Documents Multimodal inputs mostly add work at stages one and two. Images and audio files are large, so the entry point needs size limits and file scanning. Context assembly may also need a conversion step, such as speech-to-text or layout extraction from scanned forms, before the model call.
Costs and latency rise with input size, and output checks get harder when the model describes an image nobody else has looked at. The multimodal AI guide covers the model side of that choice.
Watch on YouTube
Multimodal AI in the Enterprise: 2026 Models and Use Cases
Kanerika’s Digital Shift episode on how multimodal models combine text, images and audio, which models lead in 2026, and where enterprises are putting them to work.

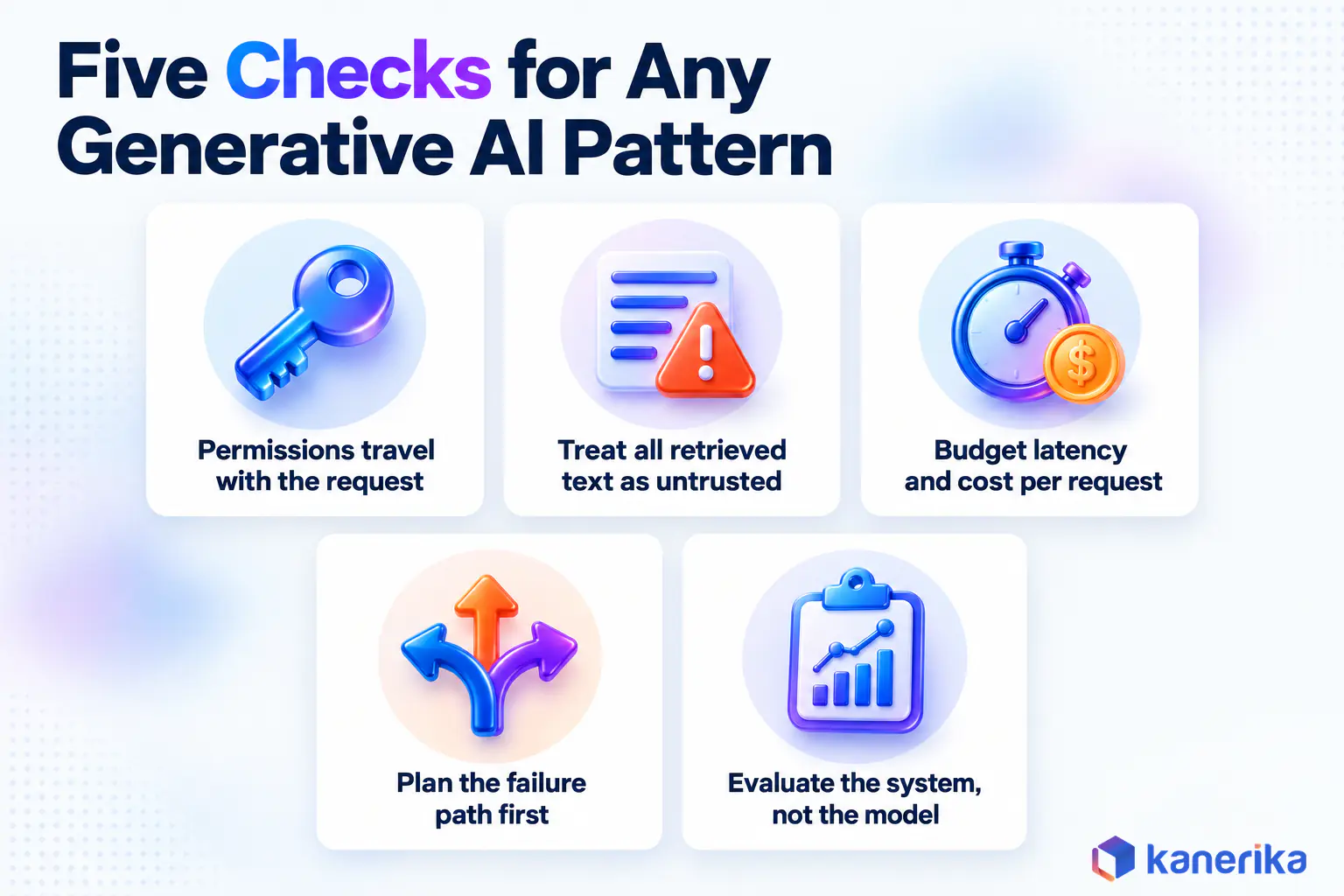

Production Concerns That Cut Across All Four Patterns Whatever the pattern, the same five concerns decide whether a design survives its security review and a busy Monday morning. Each one is cheaper to settle on paper than to retrofit after launch.
Permissions Travel With the Request The user’s identity from stage one has to reach every component that touches data or tools. Retrieval filters documents by it, and tools act under it. When identity stops at the front door, the assistant ends up with more access than the person typing into it.
Untrusted Text Can Arrive From Anywhere Prompt injection sits at the top of the OWASP Top 10 for LLM Applications as LLM01, and the architecture is where you contain it. Instructions can hide in a user message, a retrieved web page, an email the agent reads, or a tool’s response.
Treat every one of those as untrusted data and keep system instructions separate from them. Never let model output trigger a write action without a check, and see our generative AI security guide for the full set of controls.
Every Hop Adds Latency and Cost Each retrieval call, model call and tool call adds time and money, so the patterns differ sharply here. A prompt-only request might make one call, while an agent can make ten for a single task. Set a latency budget per request and a spending cap per user, then fit the pattern inside them.
Caching, meanwhile, helps more than people expect. Many service desk questions repeat every day, and a cached answer costs almost nothing to serve.
Design the Failure Path Before the Happy Path Sooner or later, models time out, indexes go stale and tools return errors. Each stage needs a defined fallback, whether that is a limited retry, a smaller backup model, a polite refusal, or a handoff to a person. A system built without a failure path tends to hang or loop the first time a dependency breaks.
Evaluate the System, Not Just the Model On its own, a model benchmark says little about your system. What matters is whether the whole pipeline gives correct, permitted and timely answers to your users’ real requests. So measure output quality for prompt-only, retrieval accuracy and grounding for RAG, held-out accuracy for fine-tuned models, and task completion for agents.
Production monitoring closes the loop. Our guide to LLM observability shows how to trace requests and run evaluations on live traffic. For risk teams, NIST’s Generative AI Profile gives a shared vocabulary for what to watch.
Five Pattern Mistakes That Keep Generative AI in Pilot Stalled projects tend to share the same design mistakes, even when the use cases look nothing alike. Each one comes from choosing or building a pattern for the wrong reason.
Reaching for agents first. A fixed workflow would handle the task, but the team builds an autonomous loop that is slower, costlier and harder to test.Using fine-tuning as a knowledge store. Facts trained into a model go stale and cannot be cited, so answers drift away from current policy.Adding retrieval without source permissions. The index becomes a back door to documents users could never open directly.Measuring the model instead of the system. A better benchmark score hides errors coming from retrieval, routing or output checks.Skipping the request contract. Without agreed inputs, outputs and a quality bar, every review turns into a debate about whether the assistant is good enough.Each fix is cheap at design time but expensive after launch. That alone is a strong reason to settle the pattern before the first sprint starts.
How Kanerika Designs Generative AI Architecture Kanerika’s generative AI services team starts every engagement from the use case and its request contract. From there, it climbs the pattern ladder only as far as the evidence requires, so clients pay for the complexity they need and nothing more.
Talk to Kanerika
Pressure-Test Your Generative AI Architecture
Bring your use case to Kanerika’s architects and walk through the pattern, request contract, permissions and failure paths before you commit to a build.
Book a Working Session → How an Engagement Runs Assess. Map the use case, its data sources, its users and its risk level before any design work starts.Define the contract. Agree the inputs, outputs, allowed context and actions, plus a quality bar backed by a test set of real requests.Build the smallest pattern. Ship prompt-only or RAG first, with identity, output checks and tracing in place from day one.Prove and climb. Add fine-tuning or agentic AI steps only when the test set shows a gap they close.Run and govern. Hand over monitoring and release controls for prompts and models, backed by Kanerika’s AI governance practice.Three Patterns From Delivered Work For a diversified conglomerate, Kanerika deployed generative AI for reporting that processed unstructured market reports and joined the results with structured data. The client cut manual analysis effort by 55% and recorded a 30% increase in accurate decision-making. It is an extraction design, where models read unstructured documents and the output joins existing structured reporting.
For an IT solutions provider, Kanerika built a resume intelligence platform that used semantic search over a vector database to match candidates to roles, a retrieval-first design. Resume screening time fell by 80%, and candidate shortlisting became 45% faster.
For a global expert network, Kanerika built an AI compliance agent that pulls profile data from internal systems. It then gathers public findings and maps them to compliance rules, with citations for each one. It follows the agentic pattern with people as the approval step. Analysts now review the agent’s cited report instead of doing the research, and vetting became 3x faster with a 70% drop in backlog cases.
Pitfalls Our Teams Watch For Three problems come up often enough that Kanerika’s architects check for them in every design review. The first is an unpinned model version, where the provider updates the model behind the same name and answers change though you shipped nothing. Another is an index with no content owner, so stale articles pile up and retrieval quality decays a little each month.
Finally, there is cost measured per model call instead of per resolved request. An agent that makes eight cheap calls to close a ticket can cost more than a RAG answer that closes it in one. Only the per-request number shows that.
Case Study
55% Less Manual Analysis With Generative AI Reporting
A diversified conglomerate used generative AI to process unstructured market reports alongside structured data, cutting manual analysis effort by 55% and lifting accurate decision-making by 30%.
Read the Case Study → Wrapping Up Generative AI architecture comes down to one decision made well. Every system shares the same lifecycle and building blocks. The pattern you choose, whether prompt-only, RAG, fine-tuned or agentic, then decides what gets added on top. Choose the simplest pattern that passes a test on real requests.
Add retrieval when answers depend on your own knowledge, fine-tuning when behavior will not hold, and agents only when the system must act. The two teams in the opening used the same model. The one that shipped simply chose its architecture on purpose.
Frequently Asked Questions
What is generative AI architecture? Generative AI architecture is the design of the full system around a generative model. It covers how requests enter, how context is assembled, which model runs, how outputs are checked, and what gets logged. The model is one component, and the surrounding design decides whether the system is accurate, secure, affordable and ready for production use.
What are the main components of a generative AI architecture? Most systems share seven building blocks. These are an application interface, orchestration and routing, prompt and context management, model access, knowledge connections, tool connections, and safety with evaluation and observability. Prompt-only systems use five of them, RAG adds knowledge connections, and agentic systems add tool connections with approval gates and step limits.

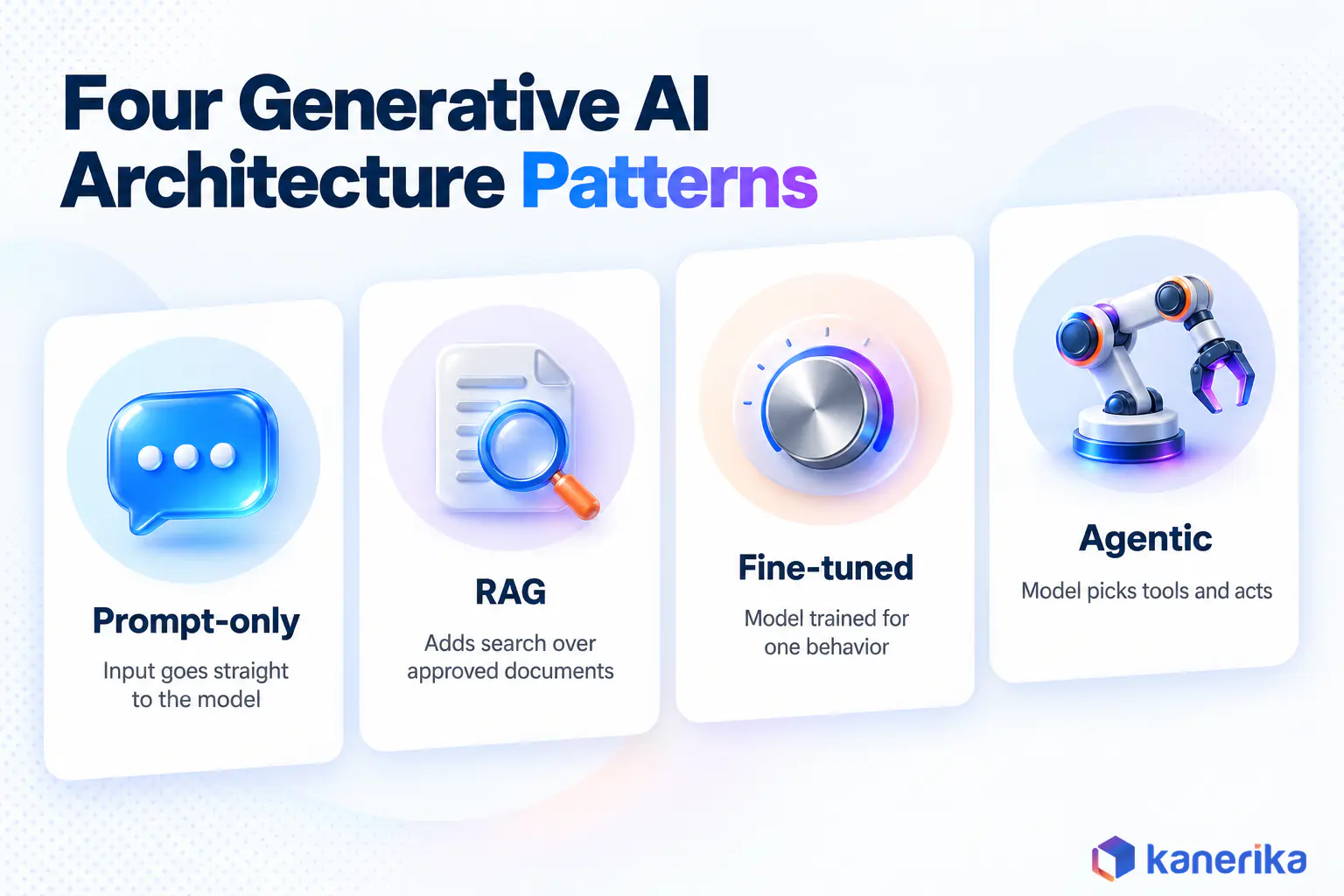

What are the four generative AI architecture patterns? The four common patterns are prompt-only, retrieval-augmented generation, fine-tuned models and agentic systems. Prompt-only sends the user’s input straight to the model. RAG adds a search over approved documents. Fine-tuning serves a model trained for a specific behavior. Agentic systems run a loop where the model chooses tools and takes actions.
Which architecture is commonly associated with generative AI models? The transformer is the architecture most associated with generative AI models, especially for text and code. It was introduced in the 2017 paper Attention Is All You Need. Image generation usually relies on diffusion models, while older approaches such as GANs and variational autoencoders still appear in some image and synthetic data work.
What is the difference between RAG and fine-tuned architecture? RAG changes what the model sees by retrieving current documents at request time, so it suits private or changing knowledge. Fine-tuning changes the model itself by training it on examples, so it suits consistent formats, tone or classification. Many production systems combine both, using a fine-tuned model inside a RAG flow when behavior and fresh facts both matter.
When should an enterprise use an agentic architecture? Use an agentic architecture when a task needs several steps across systems and those steps cannot be scripted in advance. Investigations, vendor reviews and case screening are typical examples. If the steps are known, a fixed workflow is cheaper and easier to test. Any agent that writes to business systems needs scoped permissions and approval gates.
Can one generative AI application combine several patterns? Yes, and most production systems do. A router reads each request and sends it down the cheapest path that can answer it: a plain prompt for a rewrite, retrieval for a policy question, an agent only when a tool has to act. Each added path should fix a measured problem and carry its own test set, so you can tell whether it earns its place.
What does a generative AI chatbot architecture look like? A typical enterprise chatbot uses the RAG pattern. A chat interface sends the question with the user’s identity to an orchestrator, which searches approved documents filtered by permission, builds a prompt, and calls the model. Output checks confirm grounding and policy, the answer returns with citations, and every step is traced for monitoring and evaluation.
How do you evaluate a generative AI architecture before production? Build a test set from real user requests and run the whole system against it, not just the model. Score output quality, grounding for RAG, accuracy for fine-tuned models and task completion for agents. Also test permissions, latency, cost per request and failure handling, and repeat the tests whenever a prompt, model or data source changes.
How is generative AI architecture different from enterprise AI architecture? Enterprise AI architecture is the company-wide reference for all AI work, covering data platforms, shared services, governance and infrastructure across many use cases. Generative AI architecture is narrower. It describes how one generative application handles a request and which pattern it follows, such as prompt-only, RAG, fine-tuned or agentic, within that wider foundation.
What does a generative AI architecture diagram show? A useful diagram shows the request path from left to right. It starts with the user and application, moves through identity checks, context assembly and any retrieval or tools, reaches the model, then passes output checks before the response returns. A tracing line runs underneath all stages, and each pattern adds its own boxes.
