TL;DR
An LLM evaluation framework is a structured system for testing and monitoring AI models before and after deployment. It goes beyond one-time benchmarks, covering metrics selection, test dataset design, deployment gating, and ongoing monitoring in production. This guide covers the three evaluation layers every enterprise needs, the metrics that matter by use case, agentic system evaluation, and the connection to AI governance and compliance.
In mid-2025, Deloitte Australia submitted a government workforce report that used GPT-4o for research. Most of the references were fabricated. So were some of the quotations. The client received a partial refund on a AU$440,000 contract.
The model passed whatever internal checks Deloitte ran. The failure came from having no framework for evaluating what the AI produced before it went out the door.
Enterprise agentic AI systems now show a 37% gap between lab benchmark scores and real-world deployment performance. Benchmarks alone leave that gap open. An LLM evaluation framework closes it, testing outputs against real workloads, gating deployment on defined thresholds, and monitoring quality continuously after release.
In this article we cover how to build one, the three evaluation layers every enterprise needs, the metrics that matter by use case, agentic system evaluation, CI/CD integration, and the connection to AI governance and compliance.
Key Takeaways LLM evaluation frameworks differ from benchmarks: benchmarks screen models in isolation, frameworks control quality across the full deployment lifecycle. Enterprise evaluation operates across three layers: automated pre-screening, system-level testing against real workloads, and continuous post-deployment monitoring. LLM-as-judge has become the standard for rubric-based evaluation, achieving over 80% agreement with human annotators at a fraction of the cost Evaluation datasets require domain-specific test cases and adversarial inputs, not just general-purpose prompts. Agent evaluation requires measuring reasoning quality, tool-call accuracy, and task completion separately. Single-turn metrics miss most of what can go wrong. Deployment gating and governance integration turn evaluation from a diagnostic tool into an operational control.
Is your current evaluation approach production-ready? Kanerika reviews your evaluation setup and identifies gaps before they become production problems.
Book a Meeting
Benchmarks vs. Evaluation Frameworks: Why the Difference Matters A benchmark is a scored test run on a dataset. An LLM evaluation framework is the system that governs model quality before and after deployment. It connects benchmarks, custom test sets, deployment gates, monitoring, drift detection, and governance into a structured control layer.
Most teams think they have an evaluation framework because they run benchmarks. What they have is comparison data, useful for shortlisting but not enough to control what happens when one of those models runs in a customer-facing product for six months.

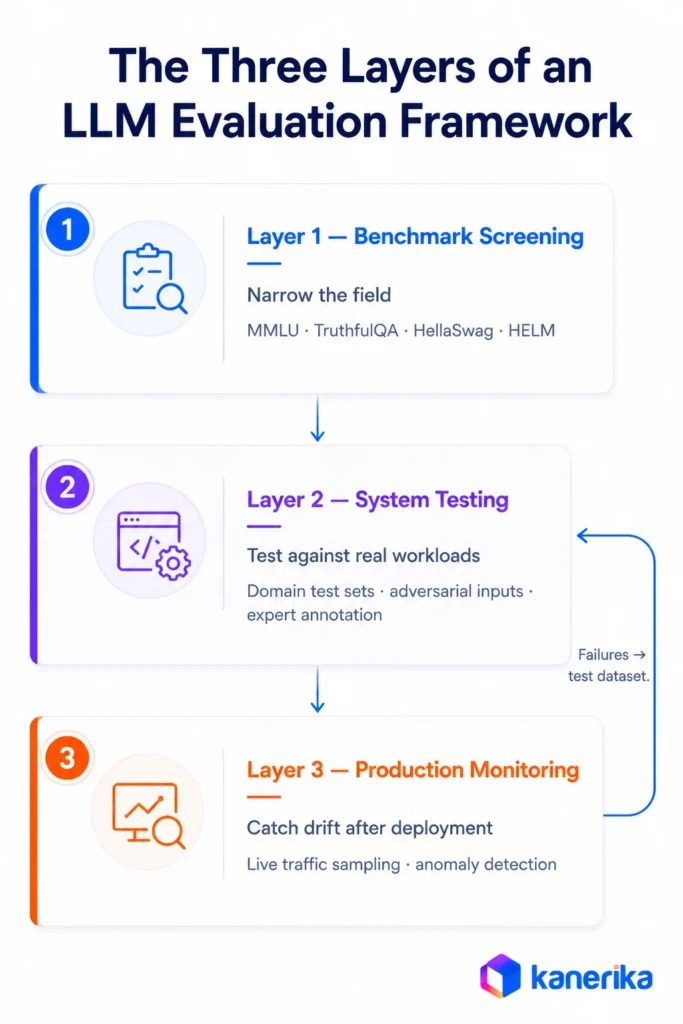

3 Evaluation Layers Every Enterprise Needs Enterprise LLM evaluation is not a single event. An effective LLM evaluation framework treats it as an ongoing process with three distinct layers, each answering a different question.
Layer 1: Automated Benchmarks for Screening Standard LLM benchmarks work well for initial model selection. The goal is to narrow a field of candidates down to two or three worth testing in depth. Common ones include:
MMLU: General knowledge and reasoning across 57 subjectsTruthfulQA: Tests whether the model avoids generating false beliefsHellaSwag: Commonsense reasoning and sentence completionHELM: Multi-dimensional evaluation across accuracy, calibration, and fairness
The limitation matters. These benchmarks measure what the model can do abstractly. A model that scores well on MMLU may still hallucinate product details, fail safety filters, or produce responses that do not match a company’s brand guidelines. Benchmark scores are a starting point, not a deployment decision.
Layer 2: System-Level Evaluation Against Real Workloads At the system level, the evaluation target changes. A chatbot, copilot, or autonomous agent must be evaluated as a complete workflow, with the prompt, retrieval logic, formatting rules, and guardrails all tested together. Test cases typically come from three sources:
Production logs: Real queries that reveal the actual difficulty distributionDomain expert annotation: Labeled examples capturing what correct looks like in contextAdversarial inputs: Edge cases designed to probe known failure modes
The standard for passing is not a benchmark score. It is whether the system meets defined thresholds on task-specific metrics before it faces real users.
Layer 3: Continuous Monitoring in Production Deployed models drift. Usage patterns shift. New edge cases appear that no pre-deployment test predicted. The third layer runs continuously after launch and does three things:
Scores live outputs against the same rubrics used during pre-deployment testing Flags anomalies and performance regressions as they emerge Feeds production failures back into the test dataset to keep evaluation aligned with real usage
Teams that skip this layer tend to find out something is wrong through user complaints, not their own instrumentation.
How to Choose LLM Evaluation Metrics for Your Use Case Choosing the right metrics depends on the use case. A customer support chatbot requires different evaluation criteria than a code generation assistant or a RAG-based knowledge agent . RAG evaluation covers two distinct failure points, retrieval and generation, that must each be assessed independently.
Deterministic Metrics (and Their Limits) Selecting metrics for an LLM evaluation framework starts with understanding what each one measures in practice. BLEU and ROUGE measure surface-level text overlap between output and reference, working reasonably well for translation or extractive summarization but correlating poorly with quality for open-ended generation, since two correct answers can look completely different on the surface.
F1 score and exact match work better for structured extraction tasks. Even then, they measure only correctness on predefined outputs and say nothing about tone, safety, or whether the response addressed the user’s underlying need.
LLM-as-Judge: How It Works and When to Use It The LLM-as-a-judge method uses a second language model to evaluate the output of the primary model against a rubric. The judge scores on dimensions like accuracy, relevance, coherence, groundedness, and safety. Research shows GPT-4-class judges achieve over 80% agreement with human annotators, making it the most cost-efficient approach for rubric-based evaluation at scale
Some metrics formalise the rubric mathematically. RAGAS Faithfulness scores a RAG response as the proportion of statements verifiable from retrieved context: Faithfulness = |verifiable statements| / |total statements|. A score of 1.0 means every claim is grounded in retrieved documents, and anything below 1.0 identifies the proportion that are not.
The main risk with LLM-as-judge is positional and self-preference bias. A judge model from the same family as the model being evaluated tends to score it higher The standard mitigation is using a judge from a different model family, running evaluations in both answer-position orders, and periodically calibrating scores against human ratings.
Tools That Support LLM Evaluation Several open-source and commercial tools have emerged to operationalize evaluation frameworks. The right choice depends on where in the lifecycle teams need the most coverage:
DeepEval: LangSmith (from LangChain ): Trace-level monitoring and prompt versioning. Useful for debugging multi-step pipelinesBraintrust / Weights & Biases: Production observability with evaluation scoring in the same pipeline. Suited for post-deployment monitoringRAGAS: Purpose-built retrieval and generation metrics for RAG systems specifically
Most production teams end up running a pre-deployment framework for dataset management and a separate observability tool for live monitoring. These roles rarely overlap cleanly in a single platform.
When Human Evaluation Is Still Necessary Automated metrics and LLM judges scale well but miss a category of failures that humans catch reliably: outputs that are technically correct but wrong in context. A response that accurately answers the literal question while missing the user’s actual intent, or one that is factually grounded but uses a tone inappropriate for the brand or audience, will pass most automated checks. Human reviewers catch both.
Most mature LLM evaluation frameworks reserve human review for three situations: calibrating the LLM judge against human annotator agreement on a sample of outputs, reviewing edge cases that automated scoring flags as borderline, and periodically auditing production outputs for quality drift that gradual metric degradation can obscure. The goal is not to replace automation with human review but to use human judgment where it genuinely adds signal that no metric captures.
Mapping Metrics to Business KPIs Every evaluation metric should connect to an operational risk or business outcome. Define this mapping before evaluation runs begin. Teams that don’t tend to discover post-deployment that they were measuring the wrong things. Common mappings:
Resolution accuracy + hallucination rate → customer escalation rate in support workflowsRetrieval recall + answer faithfulness → RAG agent reliabilityLatency at p95/p99 → SLA compliance and user experience thresholdsSafety violation rate → compliance exposure and brand risk
Use Case Primary Metrics Avoid Customer support chatbot Resolution accuracy, hallucination rate, safety violations, latency (p95) BLEU, ROUGE RAG knowledge agent Retrieval recall, answer faithfulness, groundedness, end-to-end accuracy Exact match alone Code generation Test pass rate, functional correctness, syntax validity Rubric-based scoring Agentic workflow Task completion rate, tool-call accuracy, reasoning adherence, step efficiency Single-turn metrics Document summarization Faithfulness, coherence, completeness Surface-level n-gram overlap
Building a Domain-Specific LLM Evaluation Dataset The quality of an evaluation framework depends almost entirely on the quality of the test dataset. Generic prompts produce misleading confidence.
Domain-Specific vs. General Test Cases The quality of an LLM evaluation framework depends heavily on the quality of its test data. Generic benchmark datasets won’t surface the failure modes that matter for a specific deployment. A financial services firm processing regulatory documents needs test cases from actual filings, compliance edge cases, and the query types that appear in production. Good evaluation datasets are built from multiple sources:
Production logs: Real queries that reveal the actual difficulty and intent distributionExpert annotation: Labeled examples covering edge cases and known hard scenariosSynthetic generation: Frameworks like LlamaIndex and LangChain can automate parts of this pipelineProduction failures: Routing live failures back into the dataset keeps evaluation aligned with how usage evolves
Edge Cases, Adversarial Inputs, and Red-Teaming Safety evaluation runs on a separate track from standard performance testing. Key areas to cover:
Prompt injection resistance: Can the model be manipulated into ignoring system instructions?Harmful output avoidance: Does the model produce unsafe content under adversarial prompting?System prompt extraction: Can a user elicit confidential prompt contents?Red-teaming: Structured adversarial probing by dedicated testers to find failure modes automated checks miss
For enterprise deployments in regulated industries, this is not optional. ISO 42001 and NIST AI RMF both require documented evidence of safety testing before deployment.
Already building AI applications that need evaluation baked in? Kanerika design AI systems with evaluation frameworks built into the development pipeline.
Explore AI Application Development

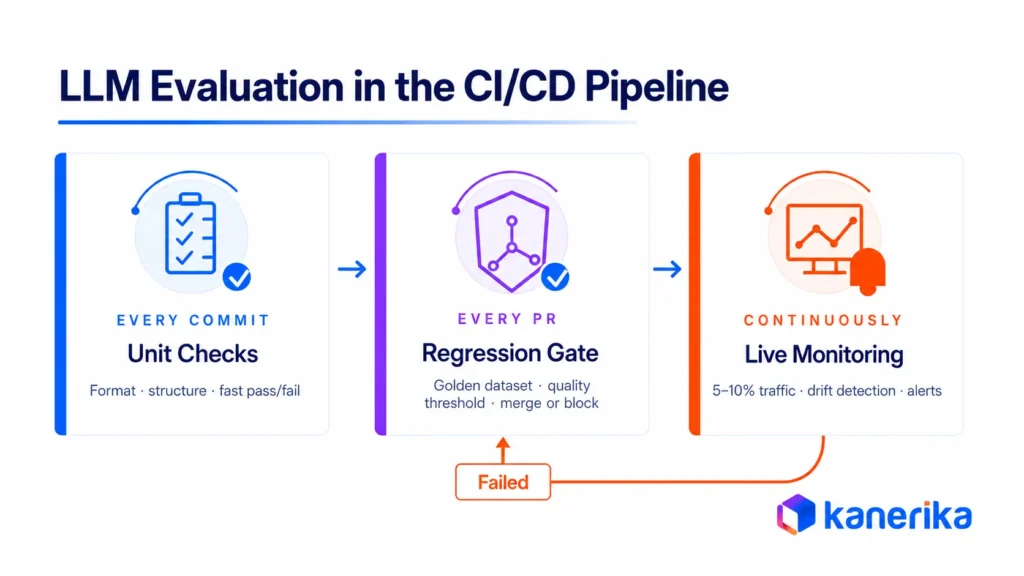

How to Wire LLM Evaluation Into Your CI/CD Pipeline An LLM evaluation framework that requires a manual trigger is one that won’t run when it matters. The goal is to make quality scoring as automatic as unit tests , firing on every prompt change, model upgrade, or configuration update without anyone remembering to kick it off.
Traces Come First Before any LLM evaluation framework can work, traces are required. A trace is a structured log of everything the system did to produce a response: the user query, retrieved documents with relevance scores, any tool calls with their arguments and results, the assembled prompt, and the final output. For agent systems, it covers every step in the reasoning chain, not just the answer.
Without traces, a team can see that 7% of outputs are failing a faithfulness check but cannot identify why. Structured tracing makes evaluation debuggable by linking each failure to specific retrieval results, model outputs, and query inputs.
Evaluation in Your CI/CD Pipeline Once traces are in place, evaluation can be wired into the development pipeline at three levels:
Unit checks on every commit: Fast, deterministic checks that catch obvious breakage before anything touches a judge. Does the output parse as valid JSON? Does the classifier return one of the expected labels? Does it contain a field it shouldn’t? These run in milliseconds and filter noise from the slower, costlier levels above them.Regression gating on every PR: Any pull request that changes a prompt, a model version, or a retrieval configuration triggers an automated eval run against the golden dataset. A PR that causes a prompt regression, where a change degrades performance on previously passing test cases, does not merge. This is where most teams start, and it’s where most teams also skip the unit check layer, which makes the CI run slower and noisier than it needs to be.Production sampling continuously: Score 5–10% of real traffic with an automated evaluator and watch for drift. This is the only layer that catches changes that happen to the system rather than changes the team makes. Model providers updating weights without changing API identifiers, input distributions shifting as new user segments arrive, or prompt behavior degrading as context windows fill differently over time.
Version the LLM evaluation dataset the same way teams version code. Treat deletions or modifications to ground truth examples as production risk. A team that quietly adds easier examples to make scores look better isn’t fixing quality. They’re moving the goalposts.
How to Evaluate LLMs for Agentic Workflows Agentic AI evaluation is where an LLM evaluation framework diverges most sharply from single-turn evaluation. An agent reasons across multiple steps, selects tools, executes actions, and adapts, meaning a single-turn output metric misses most of what can fail. Evaluation scope must match the actual system architecture, which varies between agentic AI and AI agents .
Evaluating the Reasoning Layer The reasoning layer (the LLM component that interprets goals, creates plans, and selects tools) must be evaluated separately from the final output. Correctness of the answer alone is not enough: an agent can reach the right answer through faulty reasoning that breaks on different inputs. Key metrics:
Intent detection accuracy: Did the agent correctly interpret the user’s goal?Plan validity: Did it decompose the task into steps that make sense?Instruction adherence: Did it follow system-level constraints across the full reasoning chain?
Evaluating Tool Use and Task Completion The action layer (the tools, APIs, and function calls the agent executes, see AI agent architecture ) requires its own evaluation track, separate from reasoning quality. Metrics to track:
Tool selection accuracy: Did the agent choose the right tool for each subtask?Execution correctness: Were tool calls properly formed and did they return expected results?Task completion rate: Did the agent successfully complete the full end-to-end run?
These must be evaluated at the trajectory level, not step by step. An agent that gets 8 of 10 steps right but fails on step 9 has not completed the task.
Multi-Turn and Memory Evaluation Multi-turn evaluation tests whether the agent maintains context correctly and avoids contradicting itself across steps. Memory evaluation is distinct, testing whether the agent retrieves stored information accurately and applies it at the right moment. Both are sources of subtle failure that single-turn benchmarks miss.
From Evaluation to Deployment: Gates, Shadow Testing, and AI Governance Metrics without authority are diagnostics. An evaluation framework earns its value when evaluation results gate deployment decisions. This is where evaluation connects to a broader AI governance framework .
Setting Pass/Fail Thresholds Before Deployment Deployment gates define minimum acceptable performance before a model or agent can proceed to production. These thresholds are set in consultation with stakeholders, compliance, and security before evaluation runs begin. Setting them after seeing results skews outcomes. A typical enterprise gate covers:
Task accuracy above a defined floor Hallucination rate below a defined ceiling Safety violation rate at or near zero Latency within the SLA threshold at p95 No critical failures on the adversarial test set
Metric Gate Condition Typical Enterprise Floor Task accuracy Must exceed defined minimum 85–95% depending on use case Hallucination rate Must fall below ceiling Under 2% for high-stakes tasks Safety violations Near-zero requirement 0 critical; 0.1% or less minor Latency (p95) Within SLA threshold Defined per product requirement Adversarial test set No critical failures Zero tolerance on red-team critical cases
These thresholds are illustrative. Each organization must define its own floors based on the risk profile of the specific use case.
Shadow Deployment and A/B Validation Shadow deployment is one of the most useful gates in an LLM evaluation framework. It runs the candidate model or agent on live traffic without exposing outputs to users, revealing distribution shift, latency under real load, and failure modes absent from the test dataset. Only after shadow deployment passes does the candidate enter an A/B test with a portion of real users.
This two-stage approach also produces the most realistic evaluation data available, because it operates against real queries, real system conditions, and real failure distributions.
Integrating Evaluation with AI governance Frameworks ISO 42001 and NIST AI RMF are increasingly integrated into technical evaluation pipelines as compliance gates in regulated industries This means evaluation results must be documented, traceable, and tied to deployment decisions in a way that satisfies audit requirements. Evaluation is a governance artifact, not just a quality process. For organizations deploying agents, agentic AI governance extends this across multi-agent systems and autonomous workflows.
Organizations that treat evaluation as a technical step disconnected from governance cannot demonstrate compliance when auditors ask for evidence.
4 Common Evaluation Mistakes Enterprise Teams Make These are the patterns that appear most often when an LLM evaluation framework is absent or incomplete, visible repeatedly in enterprise AI deployments that hit production problems.
1. Over-relying on Public Benchmarks Public benchmarks are useful for narrowing down candidates. They are not reliable predictors of production performance on domain-specific tasks. Common signs this mistake is happening:
Model selection is based on leaderboard rankings alone No domain-specific test set has been built before deployment decisions are made The team treats a strong MMLU score as evidence the model will work on their actual workload
Selecting from among open-source LLMs based purely on published rankings skips the system-level testing that surfaces real failure modes. The benchmark is the start of the process, not the end of it.
2. Evaluating the Model Without Evaluating the System Model evaluation tells a team what the base LLM can do in isolation. System evaluation tells the team what the application does, including prompts, retrieval logic, formatting rules, guardrails, and integration layers between the model and the user. Most production failures happen at the system level.
3. Skipping Evaluation After Initial Deployment Models degrade in production. Prompt distributions shift. New users introduce query types that never appeared in the original test set. Evaluation frameworks that only run at deployment miss all of this. What needs to run continuously:
Automated scoring of live outputs against pre-deployment rubrics Anomaly detection on metric trends over timeRouting of production failures back into the evaluation dataset
Teams that build this layer find problems before users do. Teams that don’t find out through complaints.
4. Ignoring Evaluation Dimensions That Regulators Are Starting to Require Most enterprise LLM evaluation frameworks cover correctness, safety, and latency. A narrower set of teams are starting to evaluate three dimensions that most guides don’t mention, and that regulators in some jurisdictions are beginning to formalize.
Explainability: Can the model’s output be traced back to specific inputs or retrieved context? SHAP-based interpretability analysis and attention attribution give teams documented evidence of how outputs were produced. That is directly relevant to GDPR Article 22 (automated decision-making without explainability) and ISO 42001’s auditability requirements. Most evaluation frameworks treat the model as a black box. Explainability evaluation opens it up enough to satisfy auditors.
Privacy evaluation: Membership Inference testing checks whether the model leaks information from its training data, a real risk when models are fine-tuned on proprietary enterprise data. Tools like Detoxify and runtime guardrails can catch privacy-adjacent outputs at inference time, but membership inference testing catches the training-level exposure risk that runtime checks miss entirely.
Cost and environmental impact: Token usage, compute cost per request, and carbon footprint per inference run are measurable. CarbonTrackerAI and similar tools map these to ESG reporting requirements and the EU’s emerging Green AI guidelines. For large-scale deployments, this is moving from optional to expected, particularly for enterprises with public sustainability commitments.
None of these are common practice yet. That’s partly why teams that implement them gain a governance posture that goes further than any compliance checklist currently requires.
How Kanerika Approaches LLM Evaluation Kanerika is an AI-first data and automation consulting firm with 10+ years in production AI deployments across 100+ enterprise clients, including Sony, Volkswagen, Kroger, and KBR. The firm holds a Microsoft Solutions Partner designation for Data and AI , ISO 27001 certification, and SOC II Type II compliance, and is ranked among the top AI and data consultancies by Everest Group. Amit Chandak, Chief Analytics Officer and Microsoft MVP, leads the AI evaluation methodology.
The approach treats the LLM evaluation framework as an operational control, not a pre-launch checkbox. It runs continuously across three stages.
Pre-deployment: Domain-specific test sets, LLM-as-judge scoring, adversarial red-teaming, and defined pass/fail gates before any model touches production trafficShadow deployment: Live traffic validation without user exposure, surfacing distribution shift and latency issues that test datasets cannot predictPost-deployment monitoring: Automated output scoring, drift detection, and production failure routing back into the test dataset
This framework applies across Kanerika’s named AI agents, including Karl (real-time analytics, 65% time savings), and Alan (legal document analysis), as well as custom agentic AI deployments built for enterprise clients.
Evaluation connects directly to Kanerika’s AI governance practice, which covers ISO 42001 alignment, NIST AI RMF mapping, and the KANGovern/KANComply governance suite built on Microsoft Purview. Deployment decisions come with traceable evidence, which matters when regulators ask for it.
Case Study: Context-Aware AI Agent for Expert Routing Challenge A professional services firm relied on a rules-based system to match client inquiries to internal experts The matching logic produced frequent mismatches, generating a high volume of manual review tickets Support team capacity was being consumed by re-routing work rather than handling complex cases Client response times suffered as a result
Solution Kanerika built a context-aware AI agent to replace the rules-based system The agent evaluated each inquiry across query complexity, domain requirements, expert availability, and historical match quality before routing Pre-deployment evaluation included LLM-as-judge scoring on routing reasoning quality and adversarial test cases drawn from historical failures A shadow deployment phase validated performance on live traffic before full rollout
Results Mismatch tickets reduced by 80% Manual review time for routing decisions dropped Support team capacity shifted from re-routing to genuinely complex case handling Evaluation framework provided a reliable production-readiness signal and an ongoing drift detection layer
Wrapping Up A strong LLM evaluation framework separates AI deployments that hold up from those that surprise teams in production. Getting the LLM evaluation framework right requires structured test sets, defined deployment gates, system-level evaluation, and governance integration. Teams that invest in evaluation infrastructure before problems surface are the ones that deploy AI with confidence and demonstrate compliance when auditors ask for evidence.
Where does your LLM evaluation framework stand today? We help you build one that covers pre-deployment testing, deployment gating, and live monitoring.
Schedule a Conversation
FAQs What is an LLM evaluation framework? An LLM evaluation framework is the system that governs model quality before and after deployment. It connects automated benchmarks, custom domain test sets, deployment gates, production monitoring, and governance processes into a structured control layer. Unlike a one-time benchmark run, an evaluation framework operates continuously across the full AI deployment lifecycle.
How is LLM evaluation different from traditional ML evaluation? Traditional ML evaluation is straightforward. Classification uses accuracy, regression uses mean squared error. LLM evaluation is harder because models handle dozens of task types and produce open-ended outputs. No single metric captures quality across translation, summarization, code generation, and question answering, which is why enterprise evaluation requires multi-dimensional frameworks rather than a single score.
What is LLM-as-judge and how accurate is it?
LLM-as-judge uses a second language model to score outputs from the primary model against a defined rubric. GPT-4-class judge models achieve over 80% agreement with human annotators. The main limitation is self-preference bias. A judge from the same model family as the evaluated model tends to score it higher. Mitigation involves using a judge from a different family and calibrating periodically against human ratings.
What evaluation metrics matter most in enterprise deployments? The most relevant metrics depend on the use case, but enterprise deployments typically prioritize task accuracy, hallucination rate, safety violation rate, latency at the 95th and 99th percentile, and resistance to adversarial inputs. Each metric should map directly to a business KPI or operational risk, so that evaluation results translate into specific deployment decisions rather than abstract scores.
How should teams build LLM evaluation datasets? Evaluation datasets should combine domain-specific test cases drawn from production logs and expert annotation, general capability test cases from established benchmarks, edge cases that represent known failure modes, and adversarial inputs designed to probe safety and boundary behavior. Generic prompt datasets produce misleading confidence because they do not reflect the actual query distribution a deployed system will face.
What is shadow deployment and why does it matter? Shadow deployment runs a candidate model or agent on live production traffic without exposing its outputs to users. This reveals latency under real load, distribution shift between the test dataset and production queries, and failure modes that did not surface during pre-deployment testing. Shadow deployment is the most realistic evaluation environment available and cuts the risk of production incidents.
How does LLM evaluation connect to AI governance? Compliance frameworks including ISO 42001 and NIST AI RMF now integrate with technical evaluation pipelines as deployment gates in regulated industries. Evaluation results must be documented, traceable, and tied to deployment decisions to satisfy audit requirements. Organizations that treat evaluation as a standalone technical step, disconnected from governance, cannot demonstrate compliance when regulators ask for evidence.
What is the difference between model-level and system-level LLM evaluation? Model-level evaluation measures what the base LLM can do in isolation on standardized benchmarks. System-level evaluation measures what the application does, including prompts, retrieval logic, guardrails, and integration layers between the model and the user. Most production failures happen at the system level, making system evaluation the more operationally relevant of the two.
