TL;DR
To migrate from Crystal Reports to DevExpress, you convert each RPT file to a REPX file. You then rebuild what the converter cannot carry over. Start with an inventory and a complexity rating for every report. Run the DevExpress import tool for a first pass, and fix subreports, charts, and cross-database joins by hand. Keep Crystal Reports running until the new output matches. FLIP by Kanerika automates most of the conversion work and cuts effort by an estimated 71 to 78 percent.
Key Takeaways Crystal Reports stays tied to .NET Framework 4.8, and SAP lists no plans to go higher. DevExpress stores reports as REPX files that live inside your .NET solution. Nine steps cover the full path, from inventory to retiring Crystal Reports. The native DevExpress converter handles layout and basic logic, but not subreports, charts, or pivot grids. Seven known conversion problems account for most rework, and each has a clear fix. FLIP reads RPT files and generates REPX files, and Kanerika estimates 71 to 78 percent fewer hours than a manual rebuild. Watch on YouTube
Inside FLIP by Kanerika: Faster Migration Engine Explained
A short look at how FLIP automates migration work, the same engine behind Crystal Reports to DevExpress conversions.
Why Do Crystal Report Upgrades Stall So Often? A developer opens a ticket to move a billing app to a newer .NET version. Two hours later the ticket is blocked. The invoice reports still run on Crystal Reports, and the runtime will not load in the new project.
Nobody on the team has touched those RPT files in years, and the person who built them left long ago. Now the team has two big questions at once.
Which tool replaces Crystal Reports, and how many weeks will the move take? Many teams land on DevExpress for invoices and statements, because it keeps the report inside the .NET solution.

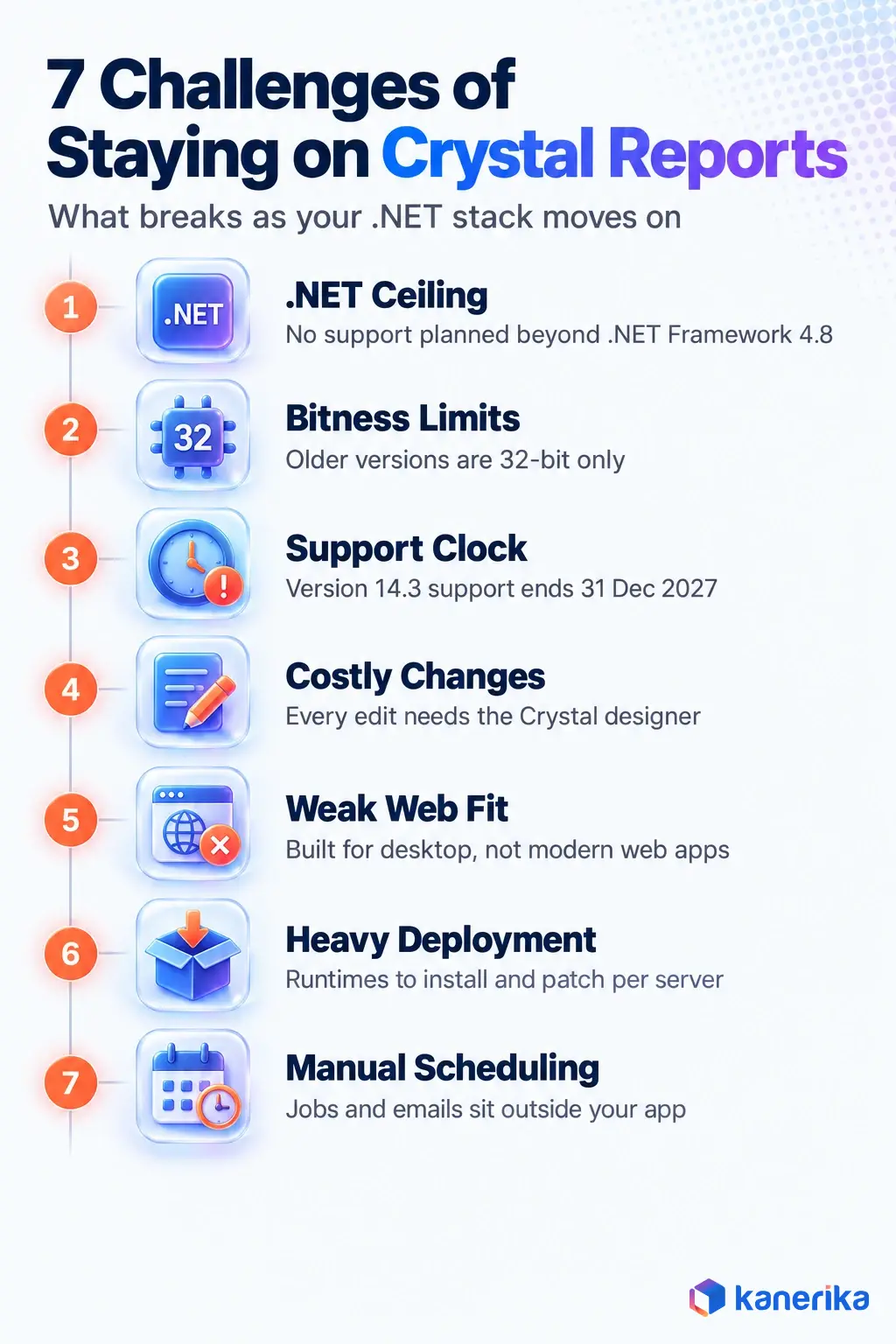

7 Challenges of Staying on Crystal Reports Crystal Reports still works for many teams. The trouble shows up when the application around it changes. These are the seven problems that come up most often in legacy system modernization projects.
The .NET ceiling. The SAP Crystal Reports community FAQ says there are no plans to update to a framework higher than 4.8. It also advises against using the CORE versions. If your roadmap includes modern .NET, the reporting layer becomes the blocker (SAP Community ). Microsoft ties .NET Framework 4.8 support to the lifecycle of the Windows version it is installed on (.NET Framework support policy ).Bitness limits. Crystal Reports 2020 is 64-bit, and earlier versions are 32-bit. A 32-bit runtime inside a 64-bit application needs workarounds that add risk.A support clock. According to the same SAP FAQ, Crystal Reports 14.3 reaches end of support on 31 December 2027. Anything built on that version needs a plan before then.Costly changes. Every layout edit needs the Crystal designer. Developers cannot change a report inside the same solution that ships the application.Weak web fit. Crystal Reports was built for desktop-era reporting. Embedding it in a modern web application takes more glue code than a native component does.Heavy deployment. Runtimes must be installed and patched on every server. Version mismatches between environments cause failures that are hard to trace.Manual scheduling. Report jobs and email delivery often sit outside the application. That splits ownership between the app team and whoever runs the report server.Each problem is manageable alone. Together they make the reporting layer the slowest part of every upgrade, which is why many teams look at application modernization trends and decide to move the reports first.
Benefits of Moving Crystal Reports to DevExpress DevExpress Reporting is a .NET reporting component. Reports are designed in Visual Studio and saved as REPX files, which are XML. Kanerika treats this as a good fit for document-style output such as invoices, statements, and delivery notes.
Reports live in your solution. REPX files sit in source control next to your code. A layout change goes through the same review and release path as any other change.One design tool for developers. The Visual Studio Report Designer lets developers edit reports without a separate Crystal install.A path past the .NET ceiling. DevExpress documents that reports can be reused in a report project on any available platform. That removes the framework limit described above.Simpler licensing. Kanerika guidance is that DevExpress licensing is generally per developer, with no per-user runtime fees for reports you ship. Confirm the terms with DevExpress before you budget.Scheduling inside the app. Schedules and emails move to your application’s own job scheduler, so one team owns the whole flow.A clear split with Power BI. DevExpress suits pixel-precise document reports. Power BI suits interactive analytics . Many organizations use both and send each report to the tool that fits it.Table 1 compares the two tools on the points that matter most during a move.
Table 1: Crystal Reports vs DevExpress Reporting
Area Crystal Reports DevExpress Reporting Report file RPT REPX (XML) Design tool Crystal Reports designer Visual Studio Report Designer Framework outlook SAP lists no plans beyond .NET Framework 4.8 Reusable in a report project on any available platform Source control Binary files, hard to compare XML files, easier to review Scheduling Often separate from the app Application job scheduler Licensing model Per SAP terms Generally per developer (Kanerika guidance)
If your reports are mostly dashboards and drill-downs, test a few in Power BI first. Our guide on Crystal Reports to Power BI migration covers that route.
Kanerika Service
Crystal Reports to DevExpress Migration
Kanerika uses FLIP to read RPT files and generate REPX reports, then handles edge cases, branding, validation and sign-off while Crystal Reports keeps running.
Explore the Migration Service What to Assess Before You Migrate A migration plan is only as good as its report inventory. Spend the first week on these seven checks, because they decide the size of the project.
Report count and owners. List every RPT file, who uses it, and how often it runs. Unused reports are the cheapest ones to migrate, because you can delete them.Complexity rating. Sort reports into simple, medium, and complex. Kanerika uses these three bands when it scopes enterprise portfolios.Data sources. Note every database, view, and stored procedure each report reads. The DevExpress importer uses only the first SQL data source it finds.Parameters. Record static and dynamic parameters, including display text and default values.Subreports, charts, and cross-tabs. These are the items most likely to need manual work.Formulas and custom functions. Flag anything beyond basic arithmetic and string handling.Output and delivery. Capture export formats, schedules, and email lists.This inventory also feeds your test plan. Our data migration checklist and the guide to data migration challenges show how to structure the same discipline for data.

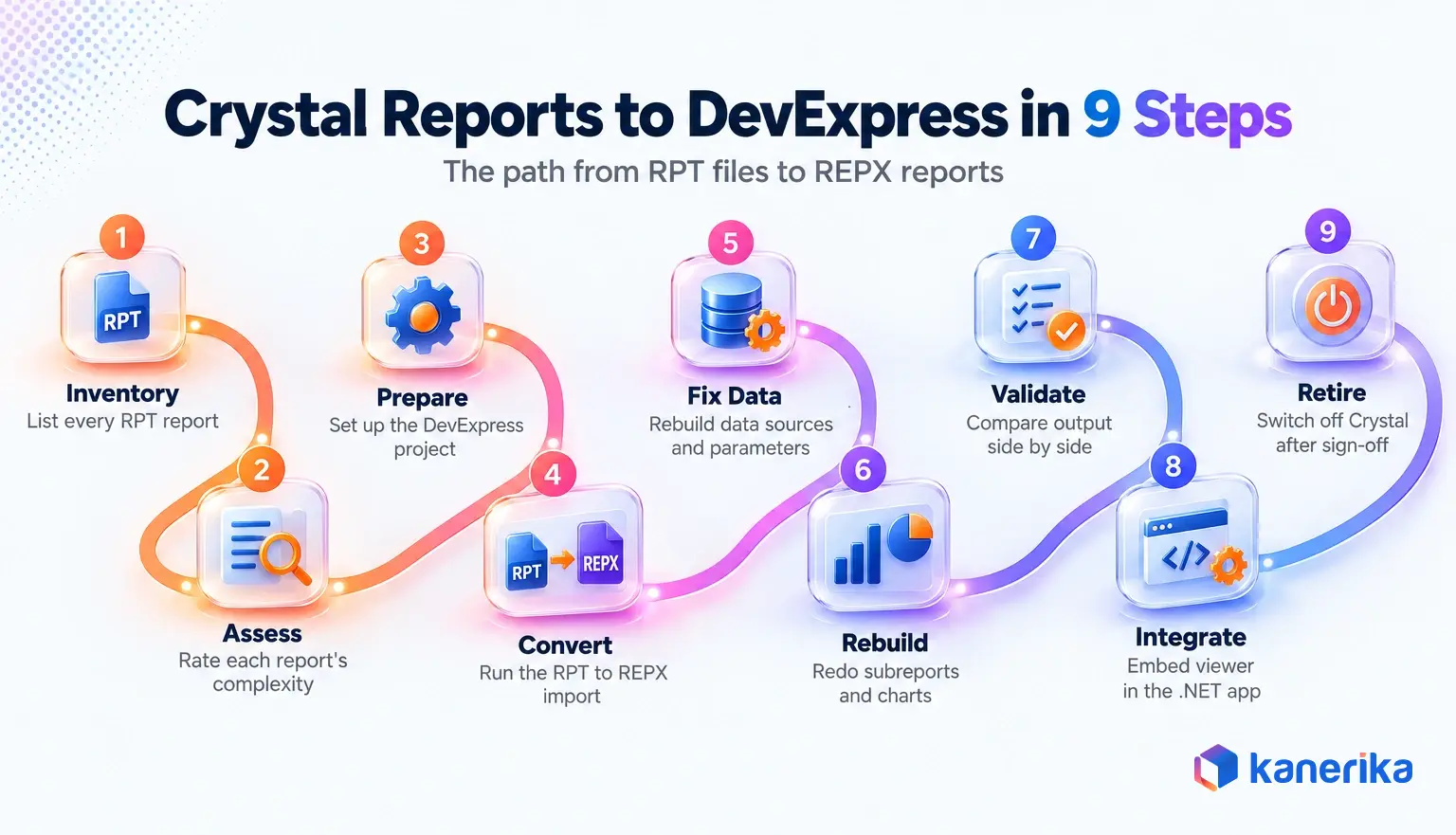

How to Migrate from Crystal Reports to DevExpress in 9 Steps The steps below follow the order most teams use. Steps 4 and 5 are where tooling saves the most time.
Step 1: Inventory Every Report Export a list of all RPT files from your file shares, report servers, and application folders. Add the owner, last run date, and run frequency. Reports nobody has run in a year are candidates for retirement, not migration.
Step 2: Assess and Rate Complexity Score each report using the seven checks above.
A simple report has one data source and no subreports. A complex one has parameters, subreports, charts, or custom formulas. Kanerika’s 73-report example had 36 simple, 25 medium, and 12 complex reports.
Step 3: Prepare the DevExpress Project Add DevExpress Reporting to your .NET solution and create a folder structure for REPX files. Agree on a shared theme for fonts, colors, and logos before conversion starts. A single theme means a brand change later is one edit, not seventy-three.
Step 4: Convert RPT Files to REPX DevExpress ships a ReportsImport command-line tool. A single file converts with ReportsImport /in:invoice.rpt /out:invoice.repx. For a folder, a loop such as FOR /R Reports %R IN (*.rpt) DO ReportsImport "/in:%R" "/out:%R.repx" converts every file in one pass.
You can also open one RPT at a time through the Visual Studio Report Designer.
The conversion machine needs Crystal Reports version 13.0 or later installed. DevExpress notes that converted reports may differ from the originals and need adjustment (DevExpress documentation ).
Table 2 compares the four ways to run this step.
Table 2: Four Ways to Convert RPT Files
Method Best for Batch support Main limit Manual rebuild A handful of simple reports No Slowest and hardest to keep consistent Visual Studio import One-off checks No, one report at a time Same conversion limits as the command line ReportsImport command line Mid-size portfolios Yes, with a loop Needs Crystal 13.0 or later on the machine FLIP Large portfolios and mixed complexity Yes Edge cases still get a human review
Step 5: Fix Data Sources and Parameters Open each converted REPX and check the data connection first. The importer brings in credentials without passwords, so you must re-enter them or switch to a secure connection setup. Then confirm every parameter, including default values and display text.
Step 6: Rebuild Subreports, Charts, and Pivot Grids DevExpress states that subreports, charts, and pivot grids come across as empty controls. Rebuild each one in the designer and bind it to the right data. Convert subreports as separate REPX files, then link them to the main report.
Step 7: Validate Against the Original Run the old and new reports on the same data and compare them side by side. Check totals, row counts, page breaks, and number formats. Our guide on data migration testing explains how to build a repeatable test set, and the glossary entry on data validation covers the basics.
Step 8: Integrate the Viewer into the .NET Application Replace the Crystal viewer with the DevExpress viewer in your application. Point the app at the new REPX files and move schedules and email delivery to your job scheduler. DevExpress notes that .NET applications support REPX only through XML serialization, so plan the loading code with that in mind (DevExpress migration guide ).
Step 9: Retire Crystal Reports After Sign-Off Run both systems in parallel for an agreed period. Ask each report owner to sign off on the new output. Switch off Crystal Reports only after the last sign-off, and archive the RPT files for reference.

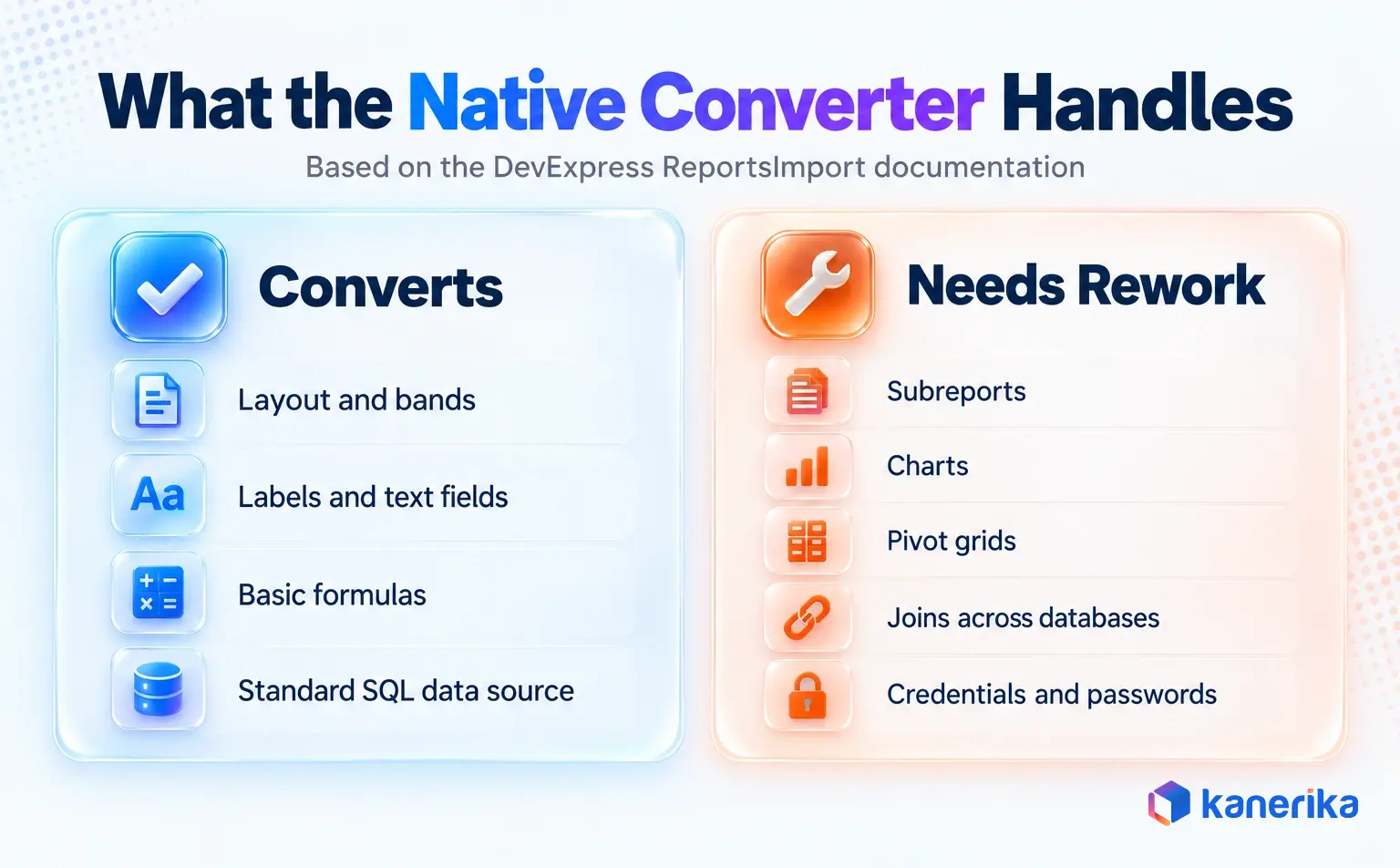

What the Native Converter Handles and What It Does Not The DevExpress importer moves layout, labels, text fields, and basic formulas. It does not carry everything. Knowing the gap in advance lets you size the rework before you start.
In practice, the importer is strong on the visible shell of a report. Bands, labels, text fields, and basic formulas come across with their positions intact. It is weaker on anything that depends on data from several places or on a special control.
It also uses only the first SQL data source, and it does not join tables from different databases. Credentials arrive without passwords. The graphic below shows the split at a glance.
7 Conversion Problems and How to Fix Them Table 3 lists the seven limits DevExpress documents for the importer, with a fix for each.
Table 3: Conversion Problems and Fixes
# Problem Fix 1 Only the first SQL data source is used Reconnect the other sources in the designer, or build one combined query or view 2 Tables from different databases are not joined Join the data in a view or stored procedure, then bind the report to it 3 Credentials import without passwords Set connection strings through secure configuration, not inside the REPX 4 Static parameters lose their Description Re-enter the description text for each parameter 5 Dynamic parameters lose their DisplayMember Set the DisplayMember again on each dynamic parameter 6 Subreports, charts, and pivot grids become empty controls Rebuild each control and bind it to its data 7 Unsupported functions show as #NOT_SUPPORTED# Replace them with DevExpress expressions or scripts, or review the Ignore option for unrecognized functions
Run a search for #NOT_SUPPORTED# across all converted files after each batch. It is the fastest way to find formulas that need a human.
How to Plan the Order of Migration Do not convert every report in one go. A wave plan keeps risk low and gives your team early wins.
Wave 1, a pilot of 10 to 15 reports. Pick a mix of simple, medium, and complex reports. The goal is to learn how your reports behave in the importer, not to finish quickly.Wave 2, all simple reports. These convert with little rework. Finishing them early shrinks the Crystal footprint and builds trust with report owners.Wave 3, medium reports. Most parameter and data source fixes show up here. Reuse the patterns you built in the pilot.Wave 4, complex reports. Subreports, charts, and heavy formulas go last, when the team knows the designer well.Wave 5, retirement. Switch off Crystal Reports server by server after the final sign-off.This order also matches how effort is spread in practice. A small share of complex reports tends to take a large share of the hours, so find them early and plan around them.
Which Reports to Retire Instead of Migrate Every migration is a chance to cut dead weight. Ask four questions about each report before you convert it.
Has anyone run it in the last 12 months? Does another report already show the same numbers? Does the business still use the process behind it? Would an interactive view in Power BI serve the reader better than a fixed layout? If the answer to the first question is no, retire the report. If the answer to the last is yes, move it to Power BI instead. DevExpress is the better home for documents that must print or export in an exact layout.
Talk to Kanerika
Sizing a Crystal Reports Migration?
Share your report count and complexity mix. Kanerika will scope the effort, flag the hard cases, and show where FLIP saves the most time.
Schedule a Demo → Handling Common Report Features in DevExpress Most of the rework comes from a few repeating features. Plan for these before the first conversion run.
Parameters and Prompts Crystal Reports prompts the user for values when a report opens. In DevExpress, parameters are defined on the report and shown in the viewer’s parameter panel. Check each converted parameter for its type, default value, and display text, because static and dynamic parameters each lose a property during import.
For cascading prompts, where one choice filters the next, rebuild the dependency in the designer and test it with real values.
Formulas and Grouping Basic formulas convert well. Custom functions and long conditional formulas are the usual source of #NOT_SUPPORTED# markers. Move shared logic into the data layer where you can, so one view or stored procedure feeds many reports.
Check grouping and sort order after conversion. A report can look right and still sort a group differently.
Branding and Shared Themes Old Crystal reports often carry a logo and font settings copied into every file. During migration, move those settings into one shared theme or base report. The 73-report engagement described later did this, and it turned a future brand change into a single edit.
Exports and Delivery Many users depend on PDF and Excel exports without knowing it. List every export format in use, then test each one on the new reports. Move schedules and email lists to the application’s job scheduler, and test failure handling as well as success.
6 Mistakes That Slow Down a Crystal Reports Migration Skipping the inventory. Teams that start converting without a list discover dependencies late, usually in production.Treating the importer as finished. DevExpress itself says converted reports may differ and need adjustment. Plan a fix step for every report.Testing with sample data only. Edge cases live in real data. Test with a recent production snapshot that has been masked as needed.Ignoring the 32-bit and 64-bit split. The converting machine and the target application may run different bitness. Check this early to avoid driver surprises.Leaving branding for last. Changing a logo across hundreds of files at the end is slow and error-prone. Set up the shared theme first.Switching off Crystal too soon. Keep it running in parallel until each owner has signed off. The cost of a short overlap is small next to a missed month-end report.The same lessons apply to broader enterprise data migration and to wider data platform migration programs.
Kanerika Service
FLIP Migration Platform
FLIP automates the heavy lifting in migrations, from report conversion to validation, so your engineers focus on the hard cases.
Explore FLIP A Realistic Timeline for the Move Timelines depend on report count and complexity, so treat the phases below as a planning frame and not a promise.
Weeks 1 to 2. Inventory, complexity rating, and a decision on which reports to retire.Weeks 3 to 4. Pilot wave, project setup, and shared theme.Weeks 5 to 10. Conversion and fixes in waves, with validation after each wave.Weeks 11 to 12. Application integration, scheduler setup, and parallel running.Week 13 onward. Sign-off and Crystal Reports retirement.A small portfolio can move faster, and a portfolio with many complex reports will take longer. Use the pilot wave to adjust these phases with your own data. It also helps to read about the difference between data conversion and data migration , since report conversion has traits of both.
What Drives the Cost of a Report Migration Four factors drive most of the effort. The first is report count, and the second is the share of complex reports.
The third is the number of data sources and parameters per report. The fourth is how much testing your business requires before sign-off.
Licensing is a separate line. Kanerika guidance is that DevExpress licensing is generally per developer. Confirm current terms with DevExpress, and compare the total against what you pay today to run Crystal Reports and its servers.
For a broader view of budgets and risks, see our overview of application modernization companies and the data modernization guide.
How FLIP Automates Crystal Reports to DevExpress Migration FLIP is Kanerika’s migration platform. For this route it reads your RPT files and generates REPX files that open in DevExpress. The work covers the reporting layer only, so your data stays where it is.
The process is short. You upload the RPT files, set an optional schedule and email notification, and submit the job. FLIP returns a zip file with the converted REPX reports, and the FLIP product page has more detail.

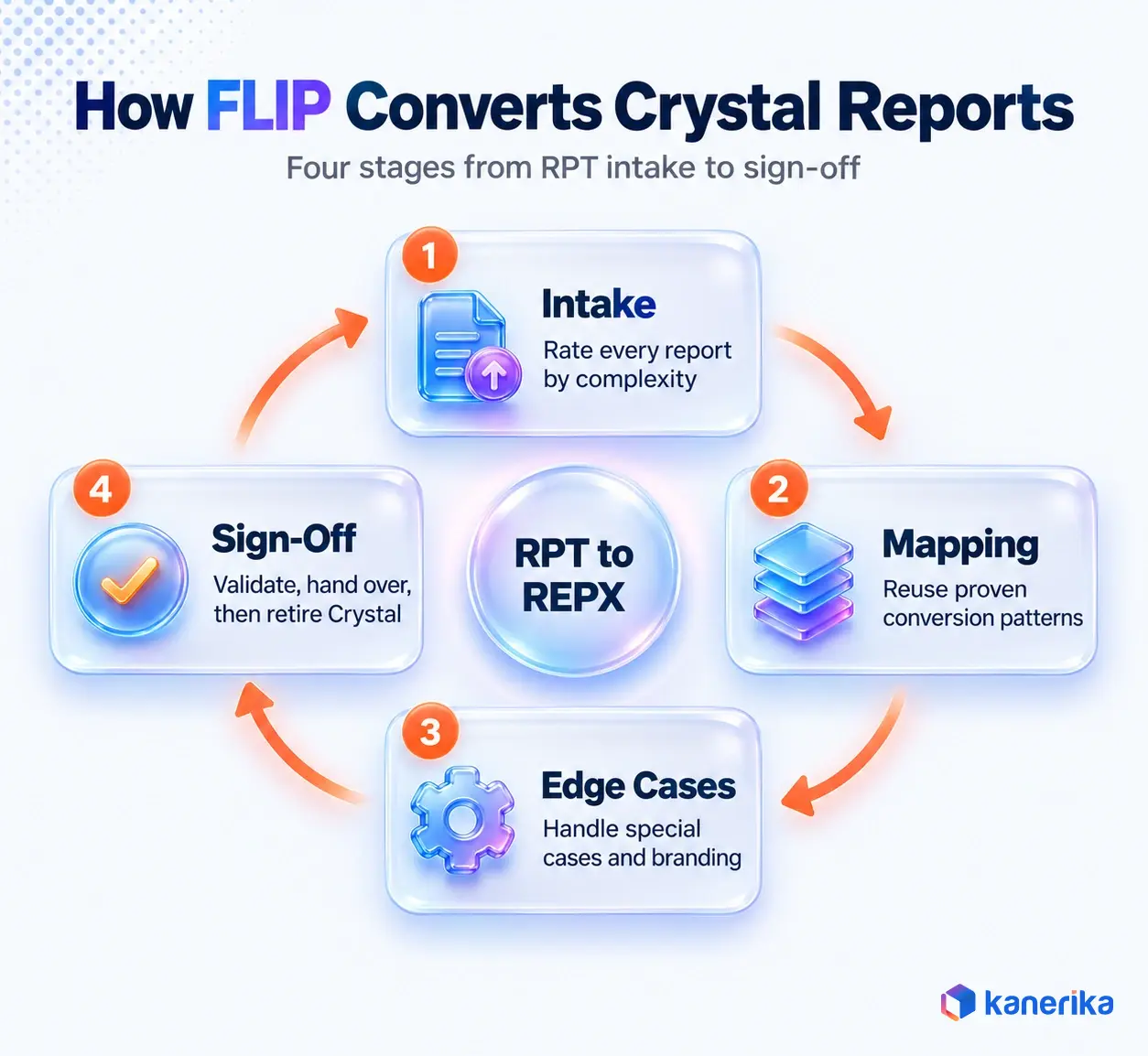

The Four Stages Behind the Tool Report intake and complexity assessment. Each report is rated, so you know what to expect before conversion starts.Reusable mapping and conversion patterns. Common layouts, formulas, and data bindings convert through shared patterns, which keeps the output consistent.Edge cases and branding integration. Special cases get handled by engineers, and branding moves into one central theme.Validation, handover, and sign-off. Output is compared with the original reports, then handed over for approval.Crystal Reports keeps running in parallel through all four stages. It is retired only after your report owners sign off.
What a Real Portfolio Looks Like One enterprise engagement covered 73 reports. Thirty-six were simple, 25 were medium, and 12 were complex. About 70 percent of the work was automated, the team spent roughly 590 hours, and all branding landed in a single theme.

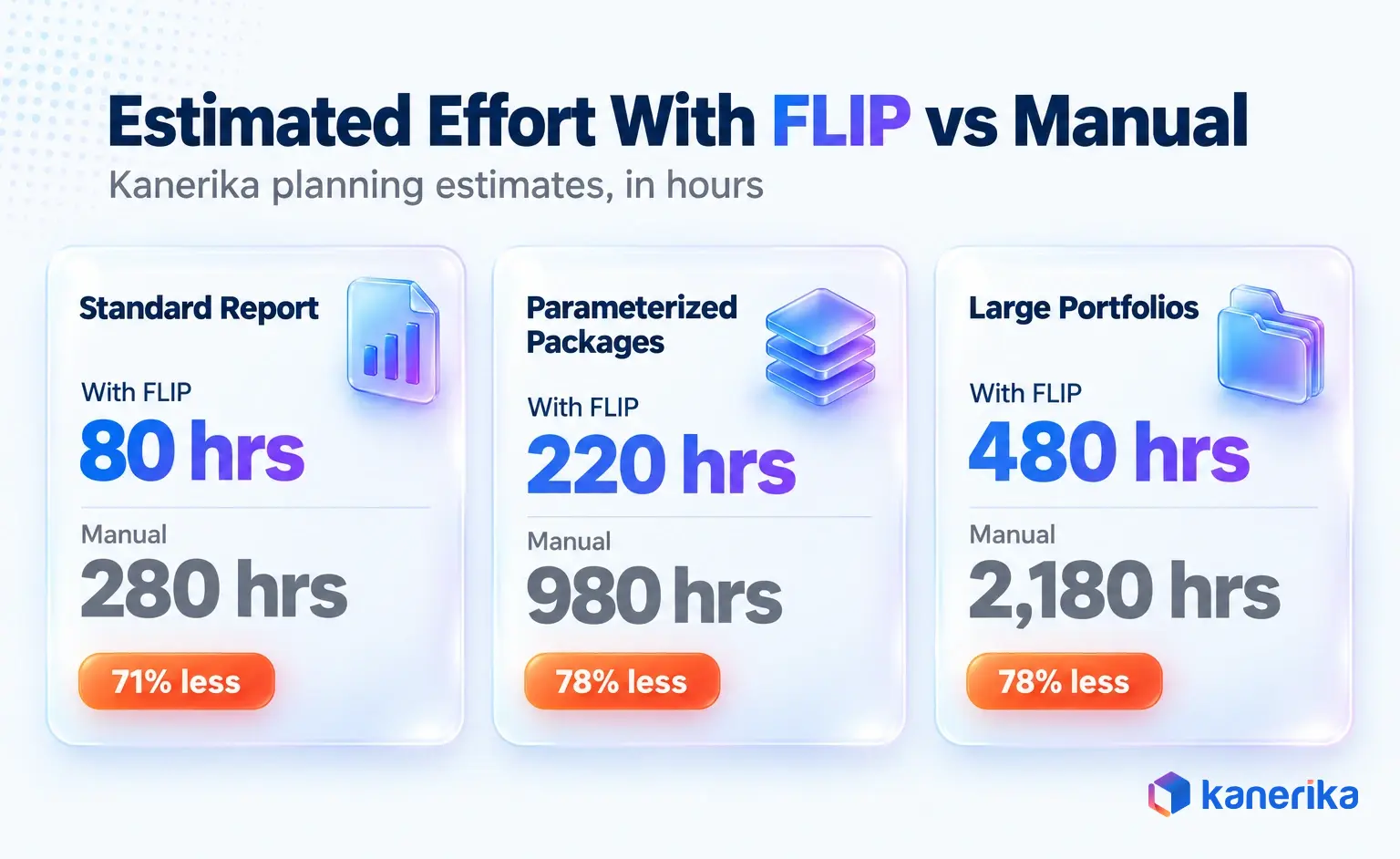

Kanerika’s own estimates for effort, shown in the graphic below, put a standard report at about 80 hours with FLIP against 280 by hand. Parameterized packages come to about 220 against 980 hours. Large portfolios come to about 480 against 2,180 hours.
These are planning estimates, and your numbers will depend on report complexity.
The remaining 30 percent is real work. Subreports, charts, and unusual formulas still need an engineer. That is why FLIP pairs automation with a review step instead of promising a one-click move.
Kanerika has run similar programs in other reporting moves. One Crystal Reports to Power BI case study reported 90 percent logic accuracy for a material handling service provider. It is a Power BI project, not a DevExpress one.
If you are still choosing a target, our guides to the top Crystal Reports alternatives and to SAP Crystal Reports end of life compare the other routes.
The same assess, convert, and validate approach applies here. For the full service scope, see the Crystal Reports to DevExpress migration service .
Manual Rebuild vs FLIP at a Glance A manual rebuild gives full control and suits a short list of reports. FLIP suits portfolios where consistency and speed matter more. Many teams mix the two, using FLIP for the bulk and engineers for the hard cases.
The same principle applies in other moves. Our posts on AI-powered data migration , Cognos to Power BI , Tableau to Power BI , and Qlik to Power BI show where automation helps and where it does not.
Case Study
90% Logic Accuracy in Crystal Reports to Power BI Migration
A material handling service provider moved off Crystal Reports with 90 percent logic accuracy and 70 percent faster insight delivery, using the same assess, convert and validate approach.
Read the Case Study → A Validation Checklist Before You Switch Off Crystal Reports Use this list for every report before sign-off.
Totals and subtotals match the original on the same data. Row counts match for every group and page. Date, currency, and number formats match. Every parameter filters data the way it did before. Page breaks, headers, and footers land in the same places. Exports to PDF, Excel, and any other formats open cleanly. Scheduled jobs and email delivery run from the new scheduler. The report owner has signed off in writing. Keep the results as a record. Good migration governance makes later audits much easier.
Where to Start This Week Pick ten reports and spread them across simple, medium, and complex. Run them through the ReportsImport tool and count what breaks. That count tells you more about your project size than any estimate.
Then ask each report owner which reports they would miss if they disappeared tomorrow. Plan your waves from those real numbers. If the count looks large, or you want a second opinion on scope, talk to Kanerika before you commit a team to the rebuild.
Frequently Asked Questions
How do I migrate from Crystal Reports to DevExpress? Inventory your RPT files and rate each one by complexity. Convert them to REPX with the DevExpress ReportsImport tool or an automated platform such as FLIP. Rebuild subreports, charts, and pivot grids by hand, fix data sources and parameters, and validate the output against the originals. Run both systems in parallel and retire Crystal Reports after sign-off.
Can DevExpress open Crystal Reports RPT files directly? DevExpress can import RPT files through the ReportsImport command-line tool or the Visual Studio Report Designer. The result is a REPX file. The converting machine needs Crystal Reports version 13.0 or later. DevExpress notes that converted reports may differ from the originals, so each one needs a review and some adjustment.
What does the DevExpress converter not handle? DevExpress documents several limits. Only the first SQL data source is used, and tables from different databases are not joined. Credentials import without passwords. Static parameters lose their Description, and dynamic parameters lose their DisplayMember. Subreports, charts, and pivot grids become empty controls, and unsupported functions show as #NOT_SUPPORTED#. Check the list after every conversion batch.
Can I convert many Crystal reports at once? Yes. The command-line tool supports batch conversion with a loop, such as a FOR /R command that runs ReportsImport on every RPT file in a folder. The Visual Studio import handles one report at a time. FLIP also converts in batches, and it returns the REPX files in a single zip.
Why move off Crystal Reports at all? Many teams hit limits as their applications change. SAP states there are no plans to update Crystal Reports to a framework higher than 4.8, and version 14.3 reaches end of support on 31 December 2027. Reports are also tied to a separate designer and runtime. If your roadmap includes modern .NET, the reporting layer needs a plan.
Is DevExpress better than Power BI for Crystal Reports replacement? Neither is better in general. DevExpress suits document-style reports such as invoices and statements that need an exact layout. Power BI suits interactive analytics and dashboards. Many organizations use both, and they send each Crystal report to the tool that fits its purpose. If you are unsure, test a few reports in both tools and compare the results with their owners.
How long does a Crystal Reports to DevExpress migration take? It depends on report count and complexity. Kanerika estimates about 80 hours per standard report with FLIP against 280 by hand, and about 480 hours against 2,180 for a large portfolio. Run a pilot of 10 to 15 reports first, then adjust your plan with your own results. Those figures are Kanerika estimates.
How much of the migration can be automated? In one Kanerika engagement with 73 reports, about 70 percent of the work was automated and the team spent roughly 590 hours. The rest needed engineers for subreports, charts, and unusual formulas. Expect automation to cover the bulk of simple and medium reports, and plan manual time for complex ones.
What does DevExpress licensing look like? Kanerika guidance is that DevExpress licensing is generally per developer, with no per-user runtime fees for the reports you ship. Terms can change, so confirm the current model with DevExpress before you build a budget. Compare it with what you pay now for Crystal Reports licenses and servers. Ask for the terms in writing.
Will my data change during the migration? No. The migration covers the reporting layer only. Your databases, views, and stored procedures stay where they are. The new reports connect to the same sources, although you may need to reset credentials, because the importer brings them in without passwords. Test every connection after conversion, and keep Crystal Reports running in parallel until all reports match.
How do I validate converted reports? Run the old and new reports on the same data and compare totals, row counts, formats, parameters, page breaks, and exports. Use a recent production snapshot, masked if needed. Ask each report owner to sign off in writing before you switch off Crystal Reports. Repeat the check after every conversion wave, not only at the end.
How does FLIP handle Crystal Reports to DevExpress migration? FLIP reads your RPT files and generates REPX files that open in DevExpress. You upload the files, set an optional schedule and email notification, and submit the job. FLIP returns a zip with the results. Kanerika engineers then handle edge cases, branding, validation, and handover, and Crystal Reports runs in parallel until sign-off.
