TL;DR
A unified AI governance architecture is a technical control plane, not a policy document. It connects a policy engine, a model and agent registry, an audit trail, an access control layer, and observability into one system that governs traditional ML, generative AI, and agentic workflows through the same enforcement points.
Key Takeaways A governance architecture is a system of enforceable technical controls. A governance framework is the policy document those controls implement. Most enterprises have the second and are missing the first. Five layers do the actual work: a policy engine, a model and agent registry, an audit trail, an access control and IAM layer, and an observability layer that feeds telemetry back into enforcement. Agentic AI breaks point-in-time model governance. An agent can stay within every approved model threshold while still executing an unauthorized sequence of individually valid actions. NIST AI RMF, ISO/IEC 42001, and the EU AI Act define control objectives. None of them specify the implementation architecture that satisfies those objectives. Kanerika builds this architecture on Microsoft Purview through kanGovern, kanComply, and kanGuard, the same pattern that cut risk-detection time for a live compliance AI agent and lifted governance maturity 72% for a banking client. What NIST’s own risk management framework says about timing “Risk management should be continuous, timely, and performed throughout the AI system lifecycle dimensions.” That is not marketing copy. It is a direct line from the National Institute of Standards and Technology’s AI Risk Management Framework , the closest thing the industry has to a shared definition of what AI governance is supposed to accomplish.
Most enterprise AI governance content stops at the policy layer. It explains principles, committees, and review cadences, then leaves the reader to figure out how any of that gets enforced when a model serves a prediction at 2 a.m. or an agent calls a tool it was never explicitly told to call.
A governance framework tells an organization what it should do. A governance architecture is the system that makes sure it actually happens, on every request, whether or not a human is watching. This piece is about the second one.
What Is a Unified AI Governance Architecture? A unified AI governance architecture is a shared technical control system. It converts enterprise policy into enforceable controls across data, models, prompts, agents, tools, infrastructure, and the business actions those systems trigger.
“Unified” does not mean one vendor platform. It means shared policy semantics, shared identities, shared risk records, and a shared evidence format, so a policy decision made for a model endpoint means the same thing when it is made for an agent’s tool call.
The architecture has three jobs. It governs a system before it deploys, it controls what that system does during execution, and it proves afterward what actually happened. Most governance programs are strong on the first job and weak on the other two.
NIST AI RMF’s four functions, Govern, Map, Measure, and Manage, describe what a mature program covers. They do not prescribe how a company wires a policy engine to a runtime enforcement point. That gap is exactly where most enterprise AI governance work stalls.
Table 1: Governance framework vs. governance architecture vs. adjacent systems Term What it actually is What it enforces Governance framework The policy document and organizational model (roles, principles, review cadence) Nothing directly. It defines intent. Governance architecture The technical control plane (policy engine, registry, IAM, audit trail, observability) Every policy decision, at the point where a model or agent acts MLOps platform Model training, deployment, and versioning pipeline Deployment mechanics, not policy decisions Model registry (standalone) Inventory of trained models and their metadata Nothing on its own. It is one component of the architecture. AI gateway Runtime proxy that intercepts model and agent traffic The enforcement point where the policy engine’s decision is applied GRC system Enterprise risk and compliance record-keeping Reporting and audit packaging, downstream of the architecture’s evidence
Kanerika’s own AI governance service line is built around this distinction. The delivery work starts with data integrity and model registries, not a slide deck of principles.
Why Traditional Model Governance Cannot Govern the Full AI Estate Deterministic models, foundation models, retrieval-augmented generation applications, copilots, autonomous agents, embedded SaaS AI, and third-party APIs each create a different control surface. A single model-validation checklist cannot cover all seven.
Periodic model validation, the traditional MLOps pattern, works when a model’s behavior is fixed at deployment. It breaks down against dynamic prompts, retrieved context that changes every call, tools that get added after launch, and long-running agent memory.
Model risk, system risk, data risk, interaction risk, tool risk, identity risk, and business-process risk are not the same risk. A model that passes every accuracy and bias test can still sit inside a system that has no control over which tools it is allowed to call.
This is the failure mode that matters most for agentic AI . An agent can remain entirely within its approved model thresholds while executing a sequence of individually valid actions that, taken together, is unauthorized. No single-model review catches that, because no single action in the chain looks wrong on its own.
This is a genuinely different risk category, not a bigger version of model risk. A detailed breakdown of what changes lives in Kanerika’s own writeup on agentic AI risks , which maps the specific failure patterns a static model card was never designed to catch.
Gartner’s own research points at the cost of skipping this layer. The firm predicts organizations will abandon 60% of AI projects through 2026 that are unsupported by AI-ready data, and 63% of surveyed organizations say they lack the data management practices AI actually needs. Governance gaps and data gaps are usually the same gap, which is exactly what a real AI readiness assessment is supposed to catch before a project starts, not after it stalls.
Table 2: Governance requirements by AI workload type Workload Primary control need Review cadence Traditional ML (predictive) Model validation, bias testing, drift monitoring Pre-deployment, then periodic Generative AI (single model) Output filtering, prompt injection defense, hallucination monitoring Pre-deployment, then continuous RAG applications Retrieved-content classification, data-source access control Continuous, per query Single-agent systems Tool permissioning, action authorization Continuous, per action Multi-agent systems Delegated authority limits, agent-to-agent trust boundaries Continuous, per action and per delegation

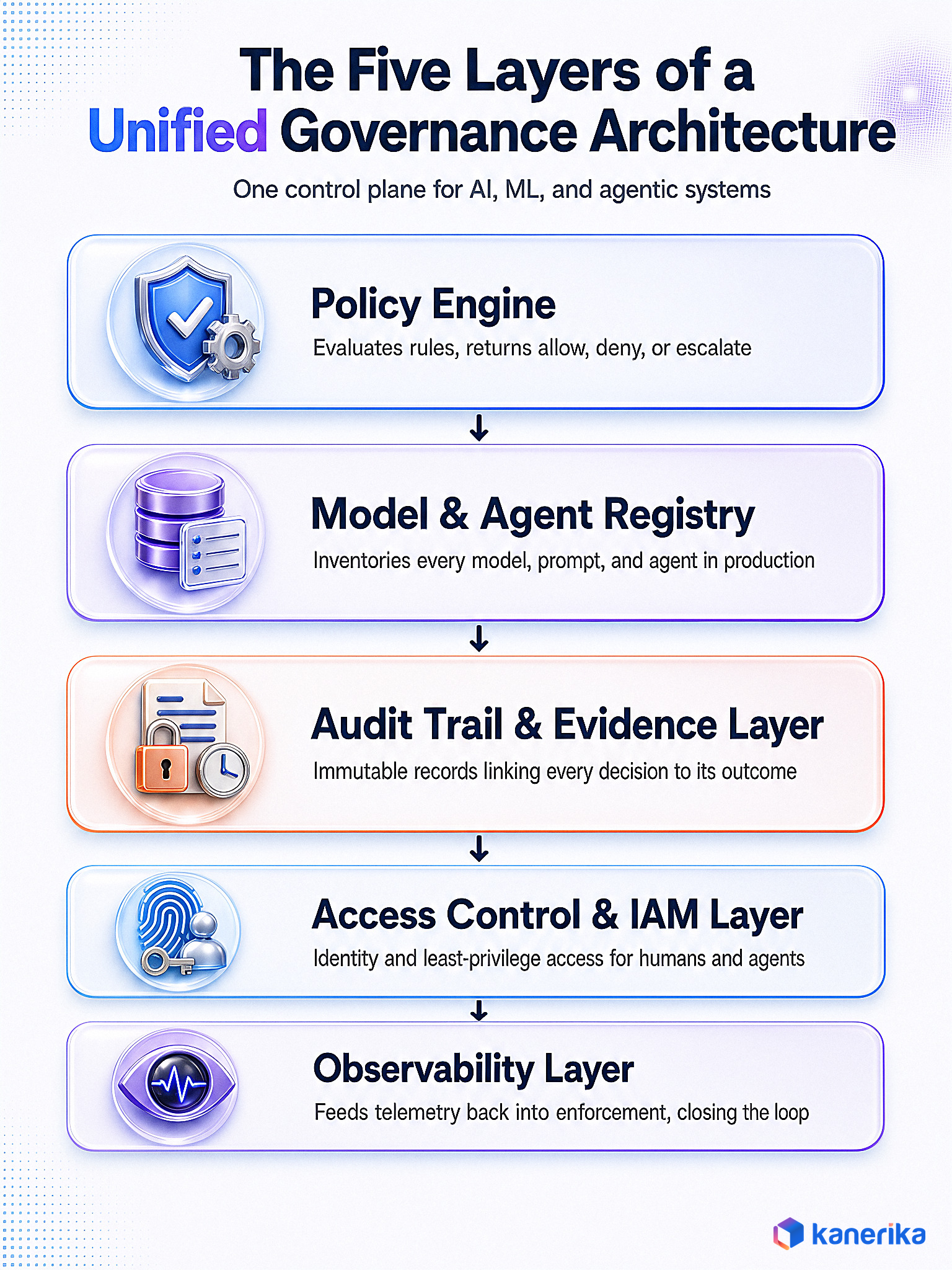

The Five Layers Every Unified Governance Architecture Needs Strip away the vendor terminology and every credible AI governance architecture reduces to five layers. Each one does a distinct job, and none of them substitutes for another.
Policy engine. Stores machine-readable rules, evaluates deployment and runtime context, and returns an allow, deny, constrain, escalate, or require-approval decision. It records which policy version made that call.Model and agent registry. A single inventory of every predictive model, foundation model, fine-tuned model, prompt, agent, and tool in production, with owner, intended use, risk tier, and approval status attached.Audit trail and evidence layer. Immutable, time-linked records connecting policy decisions, model calls, retrieved data, tool calls, human approvals, and the downstream business action they produced.Access control and IAM layer. Authenticates human and non-human actors, enforces least privilege, issues short-lived credentials, and validates authorization at every action boundary, not just at session start.Observability layer. Collects traces, drift signals, safety events, and agent state transitions, then feeds that telemetry back into the policy engine instead of ending at a dashboard.None of these layers is new by itself. What is missing across most of the market is treating them as one connected system instead of five separate purchasing decisions made by five different teams.

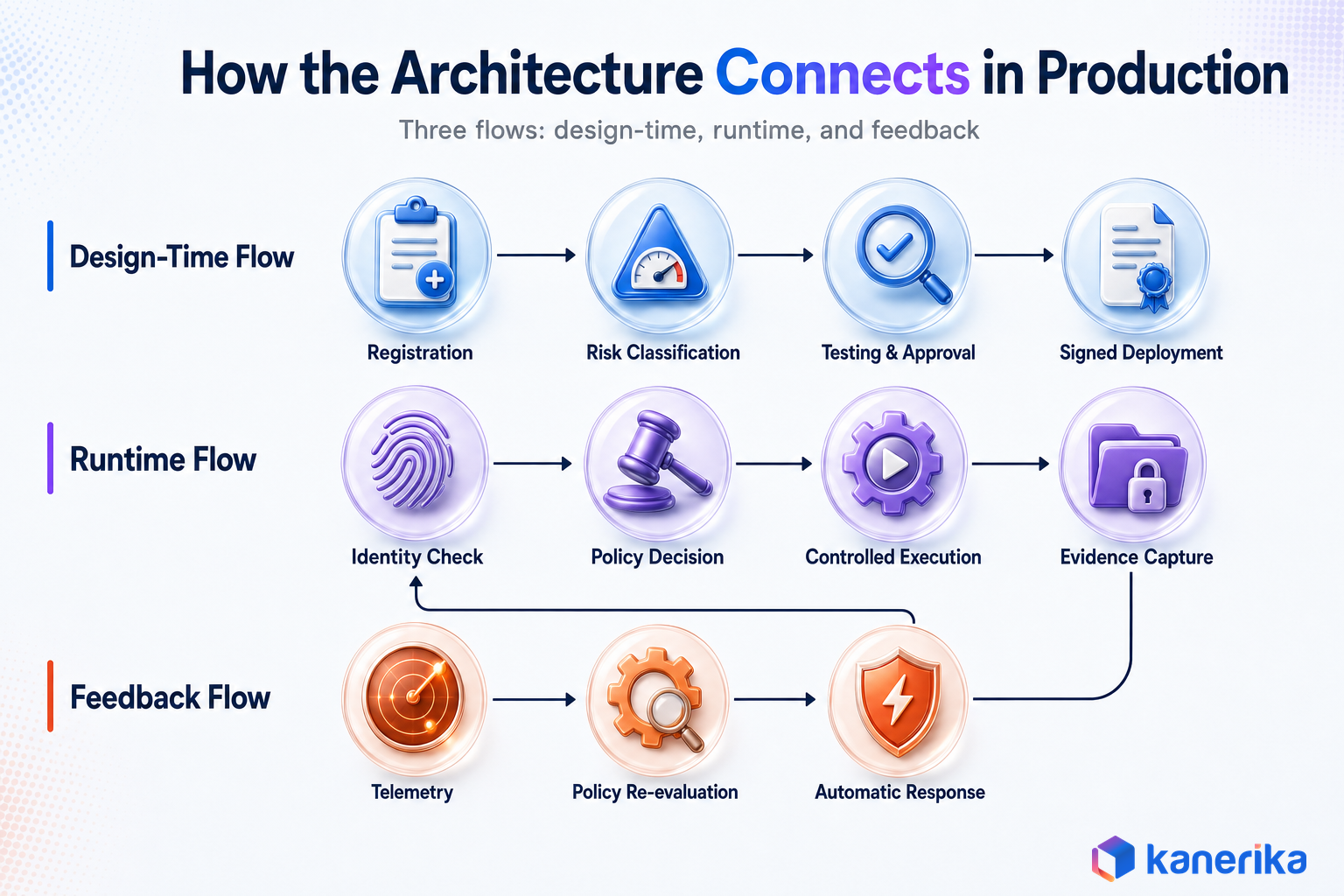

Reference Architecture: How the Layers Connect in Production The architecture has to support three flows, not one. Skipping any of the three is how governance quietly turns into paperwork.
The design-time flow runs from registration and risk classification through testing, approval, and a signed deployment artifact. A model or agent that never registers never enters governance at all, which is why shadow AI is a registry problem before it is a policy problem.
The runtime flow runs from identity validation through a policy decision, then controlled execution, then evidence capture. This is the flow most governance programs never build. Design-time review happens; request-time enforcement does not.
The feedback flow is what closes the loop. Observability telemetry, evaluated against policy, can trigger a permission reduction, a credential revocation, or a human escalation automatically, instead of waiting for the next quarterly review.
The same control plane has to govern batch predictions, real-time APIs, RAG applications, single-agent workflows, and multi-agent systems through these same three flows. A separate governance process per workload type is exactly the fragmentation that lets risk slip through the seams.
Centralized versus federated control planes is a real architectural choice, not a detail. A fully centralized policy engine gives one enforcement point but can become a latency bottleneck for high-throughput, low-latency workloads. A federated model pushes enforcement closer to each workload but needs strict policy-version synchronization or different teams end up enforcing different rules for the same request type.
Most enterprises land somewhere in between. Global policy definitions live centrally, evaluated locally by lightweight enforcement points embedded in each AI gateway or agent orchestrator, with the audit trail streaming back to one evidence store regardless of where the decision was made.

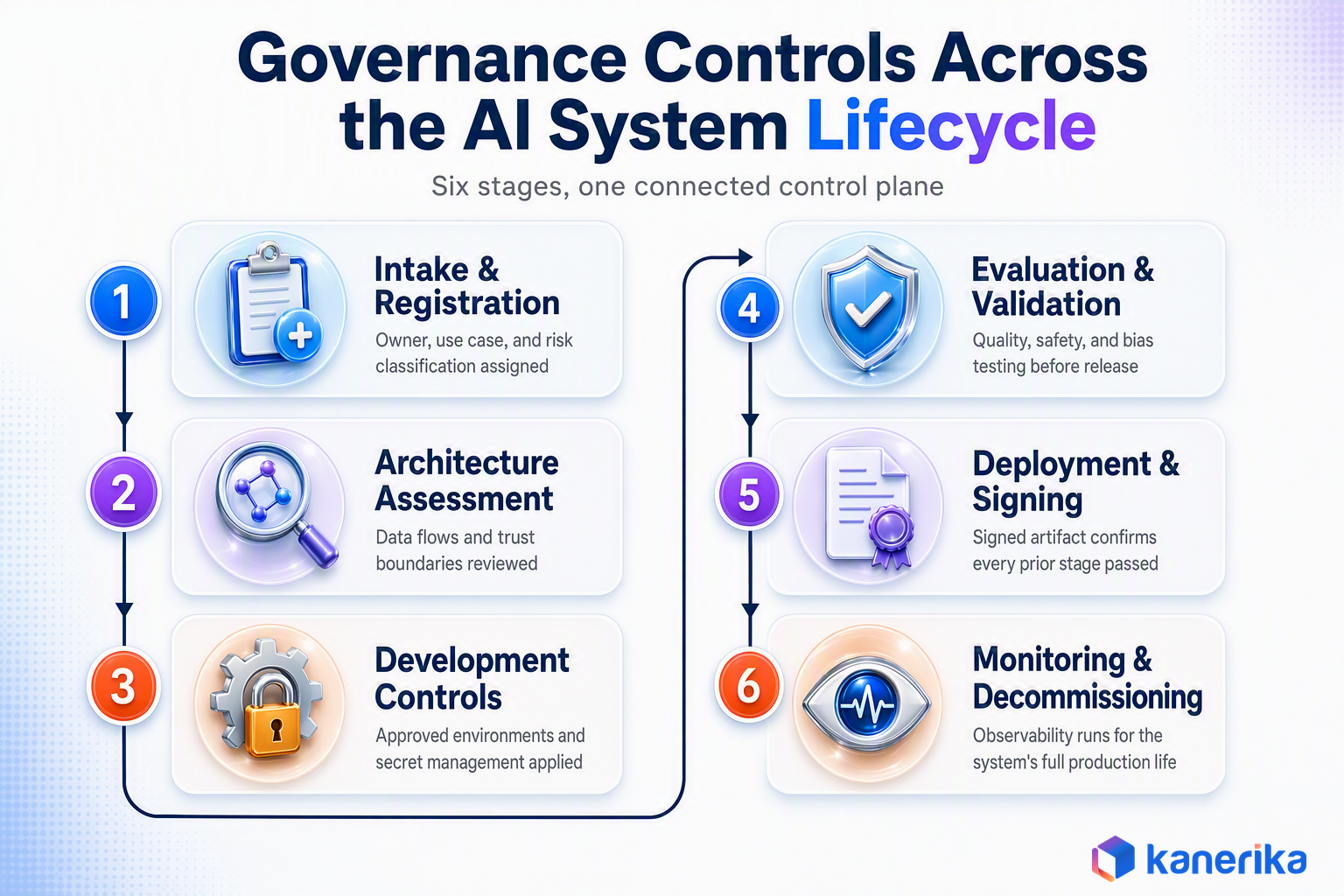

Governance Controls Across the AI System Lifecycle The five layers are the components. The lifecycle is where those components actually get invoked, and most governance programs only build controls for two or three of the six stages below.
Intake and registration. A new model, agent, or third-party AI tool gets an owner, a use case, an autonomy level, and an initial risk classification before anything else happens.Architecture assessment. Data flows, trust boundaries, tool access, and deployment regions get reviewed against the policy engine’s rule set, not against a generic checklist.Development controls. Approved environments, dependency checks, secret management, and prompt versioning apply from the first commit, not retrofitted before launch.Evaluation and validation. Quality, safety, security, bias, and groundedness testing run before release, using the same AI agent evaluation service across every workload type, not a separate ad hoc test plan per team.Deployment and signing. A deployment artifact is signed only after the policy engine confirms every prior stage passed, closing the gap between “reviewed” and “actually enforced.”Production monitoring and decommissioning. Observability runs for the system’s entire production life, and decommissioning removes it from the registry, not just from the org chart.Skipping the last stage is a quieter failure than it sounds. A decommissioned model that stays in the registry as “active” is exactly the kind of gap a shadow AI audit finds months later.
Measuring Whether the Architecture Is Actually Working Most AI governance content stops at qualitative advice. An architecture needs numbers, because “governance is working” is not a claim an auditor accepts without evidence attached.
Table 4: Design criteria for a working governance architecture Metric What it measures Policy coverage Share of registered models and agents with an active, enforced policy, not just a documented one Control latency Time between a policy decision request and the enforcement action, which has to stay under the workload’s real-time budget Trace completeness Share of production decisions with a full, reconstructable evidence chain Override rate How often a human overrides the policy engine, a leading indicator of a rule set that is miscalibrated Audit reconstruction time How long it takes an independent reviewer to answer “why did this happen” for a single flagged decision
None of these metrics require exotic tooling. They require the observability layer and the audit trail to actually be connected, which is the part most architectures skip in favor of shipping the policy engine alone.
Integration Patterns: Connecting Governance to MLOps, LLMOps, and Security Tooling A governance architecture that lives outside existing engineering tooling gets bypassed within a quarter. It has to plug into the systems teams already use, not compete with them.
On the ML side, that means the policy engine reads from and writes to the same registry a production MLOps pipeline already tracks, so a model promoted through CI/CD triggers a registration event automatically instead of requiring a manual governance ticket.
On the generative AI side, an AI gateway sits in front of every LLM and RAG deployment , intercepting requests before they reach the model rather than auditing responses after the fact.
Security operations, GRC platforms, and enterprise IAM need read access to the same evidence store, not a separate export process that runs once a quarter. An incident response team investigating an agent’s action should query the same audit trail the governance team uses, not a summarized copy.
Policy Engine Design and Policy-as-Code Enforcement A policy engine needs defined domains. Permitted use, model selection, data access, privacy, cost, geography, human-review triggers, tool execution, and output handling each need their own rule set, with traceable links back to the business or regulatory requirement that justifies each rule.
The decision request itself needs a real schema, covering actor identity, agent identity, resource, action, model, data classification, purpose, location, risk tier, delegation chain, and current system state. A policy engine that only sees “user asked for X” cannot make a risk-proportional decision.
Binary allow or deny is not enough. A mature policy engine supports constrained execution, redaction, alternate-model routing, an approval requirement, or a workflow interruption, so low-risk requests do not get the same friction as high-risk ones.
Policy definitions belong in version control, tested against historical traces and synthetic scenarios before they reach production. Open Policy Agent and cloud-native policy services fit well for structural rules; semantic checks specific to a model’s domain usually need custom logic layered on top.
Checklist
Generative AI Checklist: Secure Adoption and Governance
A practical checklist for standing up policy, access, and audit controls before a generative AI system goes into production, not after.
Get the Checklist →
Extending the Model Registry to Agents, Tools, and Data A registry built only for trained models misses most of what an enterprise actually needs to govern. The registry has to extend to prompts, agents, tools, memories, and the knowledge sources an agent retrieves from.
Every deployed endpoint and agent version should link back to its source code, configuration, model version, prompt version, evaluation report, and approval record. Without that chain, an incident investigation turns into archaeology.
Multi-agent systems are best represented as dependency graphs, not flat lists, showing parent agents, sub-agents, tool access, and the authority limits each one inherited. See how a data ontology for AI agents makes that dependency structure legible to both engineering and governance teams.
Shadow AI detection is a registry function, not a policy function. Comparing approved registry records against actual cloud usage, network traffic, and API spend is usually the fastest way to find AI systems nobody registered.
None of this works without clean lineage underneath it. A registry that cannot trace a model’s training data back through the same pipelines covered in a broader data engineering practice is tracking metadata, not governing anything.
Identity, Access Control, and Delegated Authority for AI Agents Every agent needs its own non-human identity. An agent inheriting a shared application credential cannot be individually revoked, individually audited, or individually rate-limited, which defeats the point of having controls at all.
Three separate questions have to be answered, and they are not the same question. What can the user do. What can the agent do. What can the agent do specifically on that user’s behalf, which is usually a narrower set than either of the first two.
Short-lived, task-bound credentials replace persistent API keys or copied user tokens. Authority gets revalidated before high-impact execution, not just granted once at session start and assumed valid for the rest of the session.
Delegated authority across agent-to-agent calls needs a hard limit. A downstream agent that a first agent calls should never be able to acquire broader rights than the agent that called it, which is the same confused-deputy problem security teams have handled in other systems for decades.
Watch on YouTube
How kanGuard Secures Your Data
A walkthrough of how Kanerika’s kanGuard practice prevents leaks and unauthorized access with DLP policies, the same access-control layer this architecture depends on.
Standard OAuth, SAML, and OIDC describe who a user or service is. None of them natively describes an agent’s purpose or its current delegation state, which is why Cloud Security Alliance research on agentic identity treats this as a distinct problem, not a variation on existing IAM.
Kanerika’s kanGuard practice builds this identity and access layer directly on Microsoft Purview, applying least-privilege access controls and DLP policies to the same non-human identities an agentic architecture depends on.
Audit Trails and the Evidence Architecture Regulators Actually Trust An audit record is decision evidence, not a raw dump of every prompt and response. Each record needs a timestamp, actor, agent, model, policy version, decision, reason code, data classification, retrieved sources, tool parameters, and the downstream action it produced.
Trace links matter as much as the individual records. A model call, a retrieval step, an agent’s plan, a sub-agent’s message, and a human intervention all need to connect through a shared correlation identifier, or reconstructing a single decision means stitching together five separate logs by hand.
Evidence needs append-only storage, integrity checks, encryption, and retention rules, with sensitive content minimized through hashing or structured summaries rather than stored verbatim. Denied requests belong in the record too. A blocked action is evidence the control is working.
The real test of an evidence architecture is simple. Can an independent reviewer, with no access to the original development team, reconstruct why a high-risk AI decision happened. If the answer is no, the audit trail is logging, not evidence.
Closing the Loop: Observability That Feeds Back Into Enforcement Application monitoring extended for AI needs prompt traces, retrieval quality, model routing, evaluation scores, guardrail events, tool calls, and agent state, tracked separately from the drift signals that matter for governance specifically.
Model drift, data drift, concept drift, prompt drift, retrieval drift, and permission drift are different problems with different fixes. Monitoring them as one undifferentiated “AI performance” metric hides which control actually needs attention.
The failure mode most observability programs fall into is watching without acting. Traces and dashboards accumulate, but nothing routes that telemetry back into the policy engine to trigger a permission change or a rollback automatically.
Closing that loop is what separates observability from governance. A dashboard that a human has to check is a monitoring tool. A pipeline that revokes a credential the moment drift crosses a threshold is a control.

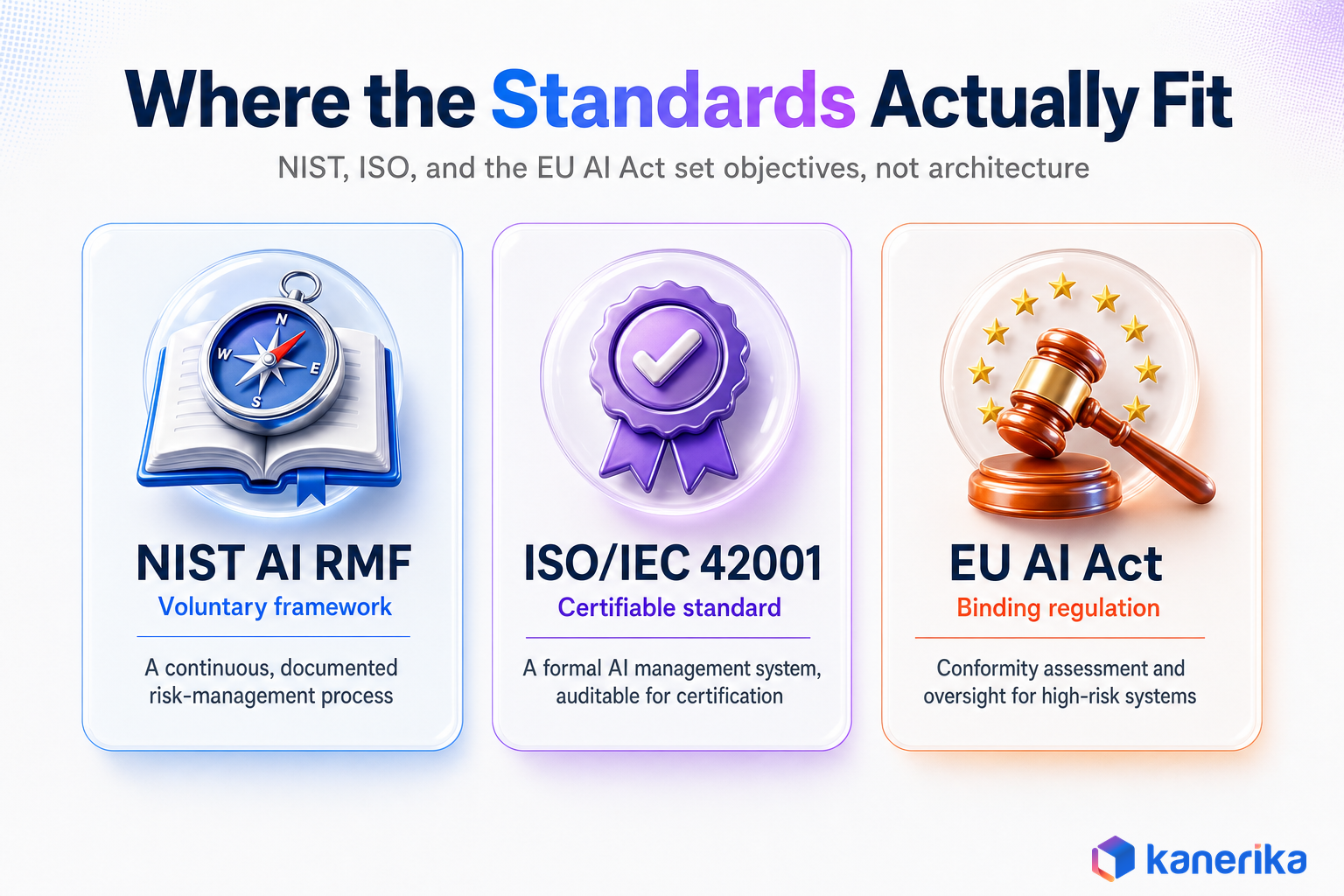

Where NIST AI RMF, ISO/IEC 42001, and the EU AI Act Actually Fit None of the three major standards specifies an implementation architecture. Each one defines what a program has to demonstrate, and leaves the technical design to the organization building it.
Table 3: What each governance standard actually requires Standard What it is What it requires NIST AI RMF Voluntary US framework, four functions (Govern, Map, Measure, Manage) A documented, continuous risk-management process. No mandated architecture. ISO/IEC 42001 Certifiable international management-system standard A formal AI management system with defined roles, controls, and continual improvement. Auditable for certification. EU AI Act Binding EU regulation, risk-tiered obligations Conformity assessment, technical documentation, and human oversight for high-risk systems, with penalties for noncompliance.
The ISO/IEC 42001 standard, published in December 2023, is the first certifiable AI management system standard. Certification proves a process exists and runs. It does not verify that the policy engine enforcing that process actually works at runtime.
The EU AI Act is the outlier among the three because it is binding law, not voluntary guidance. Its risk-tiering approach, which scales obligations to the system’s actual risk level, maps directly onto the risk-proportional controls a policy engine needs to implement.
An architecture built around these control objectives can satisfy all three standards from the same technical foundation. Building three separate compliance programs for three overlapping standards is the more common, and more expensive, alternative.
How Kanerika Builds Unified Governance Architecture in Production Kanerika delivers this architecture through kanSuite , three governance services built on Microsoft Purview rather than a bespoke stack assembled from scratch.
kanGovern handles data governance strategy and enforcement, the registry and policy layer of the architecture. kanComply covers the regulatory compliance framework, mapping controls to NIST, ISO, and regional requirements. kanGuard owns unauthorized-access prevention, the identity and access control layer.
Klara, one of Kanerika’s named AI agents, is a working example of a policy engine in production. It reviews contracts against Kanerika’s own governance playbook and flags compliance gaps automatically, rather than routing every contract through a manual review queue first.
Kanerika’s AI governance service page lists the same components this architecture depends on as delivered capabilities: a model registry with a full audit trail across production, acceptable-use policy drafting with technical guardrails, and LLMOps governance with secure access management.
The gateway layer is where a lot of this becomes concrete for a reader evaluating vendors. An AI gateway is the runtime enforcement point, the place a policy engine’s decision actually gets applied to a real request before a model or agent ever sees it.
Watch on YouTube
Can LLM Gateways Make Enterprise AI Safer?
Kanerika breaks down how an AI gateway acts as the runtime enforcement point for policy decisions, the exact role the gateway layer plays in this reference architecture.
This is also why Kanerika treats AI governance and agentic AI governance as one delivery motion instead of two separate practices. The architecture underneath both is the same five layers, whether the workload is a predictive model or a multi-agent workflow.
The delivery pattern follows the same assess, design, build, govern, and enable stages Kanerika uses across every enterprise AI engagement. Governance is not a separate track bolted onto a data or AI project after the fact. It is one of the five stages, scoped from day one.
Case Study: Real-Time Compliance and Risk Detection Through an AI Agent A financial services client needed compliance and risk detection that ran at the speed transactions actually happen, not on a batch review cycle measured in days.
Kanerika built an AI compliance agent that evaluates transactions against policy in real time, logging every decision the agent makes as it makes it rather than reconstructing the reasoning after the fact.
The result, published as the case study’s own headline, is that the agent cuts risk detection time from hours to a fraction of that window. The audit trail behind that speed is what makes the faster detection defensible to a regulator, not just fast in a demo.
The same underlying pattern, an evidence-generating control on Microsoft Purview, is what drove a separate engagement’s 72% governance improvement for a banking client . Different industries, same five-layer architecture underneath.
A third engagement, documented in Kanerika’s case study on advanced Purview implementation strategies , reached 90% compliance adherence using the same registry and access-control pattern, this time for a client with a more complex multi-region data estate.
Choosing the Right Delivery Partner for a Unified Governance Architecture A governance framework deck is easy to produce. A working policy engine wired into real model endpoints and agent orchestrators is not, and the gap between the two is where most governance initiatives stall after the kickoff meeting.
Look for a partner with delivered, not just proposed, work on the identity and audit-trail layers specifically. Framework design is table stakes. Runtime enforcement, at request time, is the part that actually separates vendors.
Ask direct questions before signing anything. How does the policy engine handle a new agent that was never registered. What happens when observability detects drift mid-session. Can an auditor reconstruct a single decision without pulling in the original engineering team.
A partner that can only point to a governance framework deck, and not to a live policy engine, a live registry, and a live audit trail running against production traffic, is proposing a project plan, not an architecture.
This matters even more for enterprises carrying older systems into an AI rollout. Retrofitting governance onto AI workloads layered on top of a legacy platform that was never inventoried in the first place costs more, and takes longer, than building the registry and policy layer in alongside the modernization work itself.
Kanerika holds ISO 27001, ISO 27701:2019, and ISO 9001:2015 certification, is SOC 2 Type II compliant, and is CMMI Level 3 appraised. As a Microsoft Solutions Partner for Data and AI, the firm has delivered this same Purview-based architecture across banking, healthcare, and manufacturing clients.
Wrapping Up A governance framework tells an organization what good looks like. A unified governance architecture is the system that makes good the default outcome, on every request, without a human in the loop for each one.
The five layers, policy engine, registry, audit trail, access control, and observability, are not optional add-ons to an AI platform. They are the difference between a governance program that survives an audit and one that only survives a slide review.
Planning a Unified Governance Architecture?
Kanerika Service
AI Governance Services
Kanerika designs and deploys the policy engine, registry, audit trail, and access control layers that make AI governance enforceable, not just documented, on Microsoft Purview.
Explore AI Governance Services →
Frequently Asked Questions
What is the difference between an AI governance framework and an AI governance architecture? A governance framework is the policy document. It defines principles, roles, and review cadences, but does not enforce anything on its own. A governance architecture is the technical control plane, a policy engine, registry, audit trail, access control layer, and observability, that turns those principles into decisions enforced on every model call and agent action.
What are the five core components of a unified AI governance architecture? A policy engine that evaluates and enforces rules, a model and agent registry that inventories every AI asset in production, an audit trail and evidence layer that records decisions, an access control and IAM layer for human and non-human identities, and an observability layer that feeds telemetry back into enforcement.
How is agentic AI governance different from traditional ML model governance? Traditional model governance is periodic. A model is validated before deployment and reviewed on a schedule after. Agentic AI needs continuous, request-time governance, because an agent can stay within every approved model threshold while still executing an unauthorized sequence of individually valid actions across multiple tool calls.
Does NIST's AI Risk Management Framework require a specific technical architecture? No. NIST AI RMF’s four functions, Govern, Map, Measure, and Manage, define control objectives an organization has to meet. It does not prescribe how those objectives get implemented technically, which is why two organizations can both be RMF-aligned while running very different underlying architectures.
What is a model registry in AI governance, and how is it different from a standard MLOps model registry? A standard MLOps model registry tracks trained models and their versions. A governance-grade registry extends that to prompts, agents, tools, memories, and knowledge sources, with owner, risk tier, and approval status attached, so it functions as the single inventory the policy engine and audit trail both reference.
How do you implement access control for autonomous AI agents? Each agent gets its own non-human identity rather than a shared application credential. Access follows least privilege, credentials are short-lived and task-bound, and authority is revalidated before high-impact actions rather than assumed valid for an entire session, including limits on what a downstream agent can inherit from the agent that called it.
What is policy-as-code in the context of AI governance? Policy-as-code means governance rules are written in a machine-readable format, version-controlled, and tested against historical traces before release, the same discipline software teams already apply to infrastructure. Tools like Open Policy Agent handle structural rules, while domain-specific semantic checks are usually layered on top.
How long does it take to build a unified AI governance architecture? Timelines vary with the size of the existing AI estate, but a phased build, starting with the registry and policy engine for highest-risk workloads, then extending access control, audit trail, and observability, is faster and lower-risk than trying to govern every system at once from day one.
