A manufacturing team runs its first diffusion model pilot. Image quality looks promising in tests. Then they try fine-tuning it for synthetic defect generation, and output quality drops, generation slows, and no one can pinpoint why.
The issue is almost never the concept. Most teams understand that diffusion models add noise, then learn to remove it. What trips them up is the architecture underneath, and the components that actually determine quality, speed, and production behavior.
This article covers the core components of diffusion model architecture: U-Net internals, noise schedulers, latent compression, text conditioning, fine-tuning approaches, and Diffusion Transformers, with a direct line from each to what it means when you deploy these systems at scale. For a conceptual overview of what diffusion models are and where they are used, see the diffusion models in AI overview . This article goes one level deeper into the architecture.
Key Takeaways The forward process (adding noise) is fixed math. All the complexity lives in the learned reverse process that generates images. The noise scheduler (linear or cosine) controls how fast structure is destroyed during training and directly affects output quality. Latent diffusion models compress images into a smaller latent space before diffusion, cutting compute by 16 to 64 times versus pixel-space approaches. Diffusion Transformers (DiT) are replacing U-Net backbones in the latest production models (Flux 2, Stable Diffusion 3.5) because they scale better with compute. LoRA fine-tuning at rank 16 to 32 covers most enterprise use cases (product rendering, synthetic data, brand-consistent content) without full retraining.

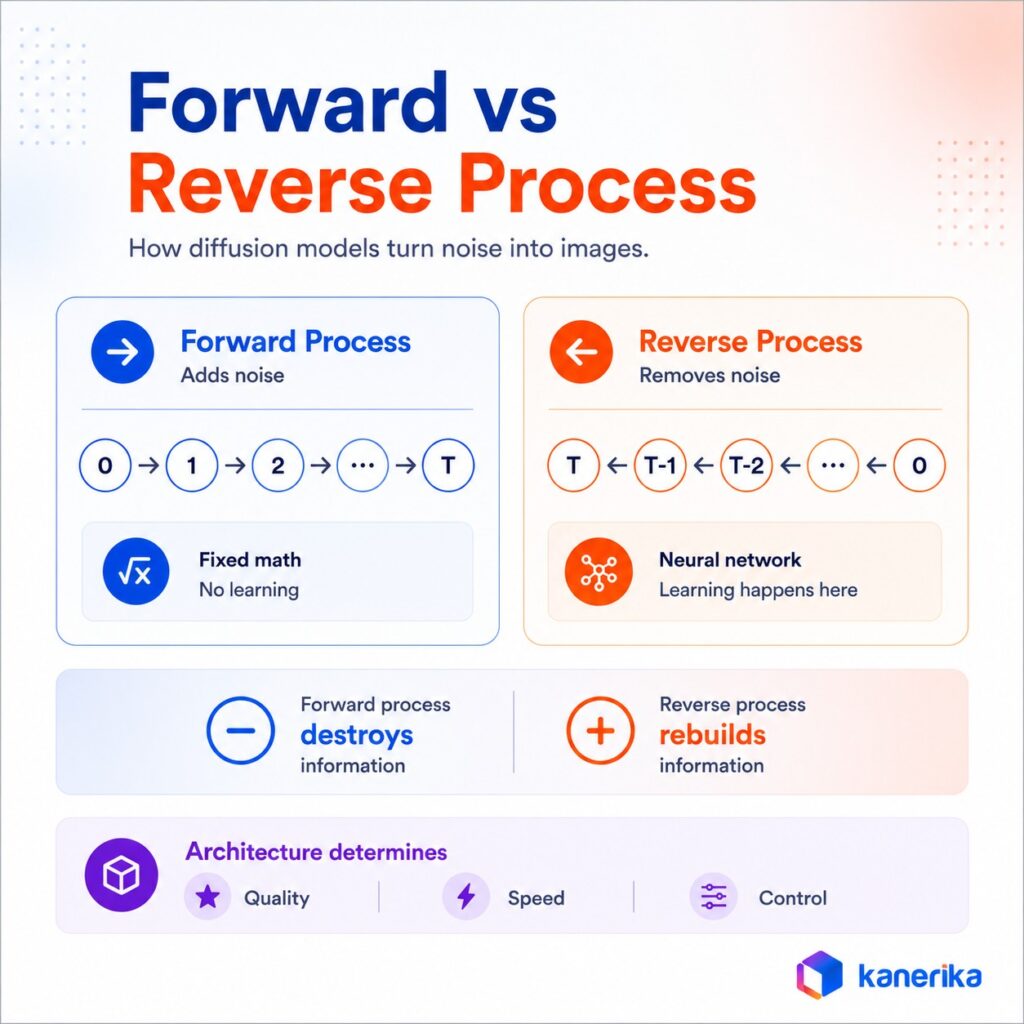

How Diffusion Models Work: The Forward and Reverse Process Every diffusion model runs on two distinct processes working in opposite directions. Understanding what each one does makes every architectural decision downstream much easier to follow. For context on where diffusion models sit relative to other AI approaches, diffusion models versus LLMs covers when each makes sense in practice.
The forward process works like this:
The model takes a real image and adds small amounts of Gaussian noise at each timestep This continues across hundreds or thousands of steps until the image is completely unrecognizable No learning happens here. It is pure, fixed math that always behaves the same way The schedule controlling how fast noise is added (linear, cosine, or flow matching) is the only variable
The reverse process is where the architecture lives:
A neural network (U-Net or Diffusion Transformer) learns to remove noise step by step Starting from pure noise, it reconstructs a meaningful image by reversing what the forward process did The network learns from seeing millions of examples of noisy images and their cleaner versions Every architectural choice (backbone, scheduler, text encoder, fine-tuning method) shapes how well this works
The forward process is a Markov chain where each noisy step depends only on the prior step, which keeps the math tractable. The reverse process must learn a complex conditional distribution, and the architecture doing that learning is what determines generation quality, inference speed, and production controllability. Generative adversarial networks faced a similar design challenge; diffusion models resolved training instability by replacing adversarial training with a principled probabilistic objective.
How Noise Schedulers, Prediction Objectives, and Samplers Shape Output Noise Scheduler Types: Linear, Cosine, and Flow Matching The noise scheduler controls how fast noise accumulates at each timestep. It looks like a minor implementation choice. It is not.
The original DDPM paper used a linear schedule where noise increases proportionally across timesteps. The issue is that linear scheduling destroys structural information too aggressively in early steps. Nichol and Dhariwal (2021) showed in Improved DDPMs that a cosine schedule produces measurably better sample quality and training stability because it preserves meaningful signal longer.
Modern frontier models, Flux 2 and Stable Diffusion 3.5, go further with flow matching, introduced in Lipman et al. 2022 . Flow matching replaces the classical diffusion SDE with an ODE that learns a direct vector field from noise to data. Training is more stable at high resolution, and the same model can be sampled with any ODE solver without scheduler-specific tuning. Flow matching is now the standard in every major frontier model released since mid-2024.
Scheduler Used In Strength Practical Note Linear DDPM (2020) Simple to implement Destroys structure early; deprecated in production Cosine Improved DDPM, SDXL Better training stability Standard for SDXL-era models Rectified Flow (Flow Matching) Flux 2, SD 3.5 Straighter noise-to-image paths, faster convergence Current default in frontier models
Noise Prediction Objectives: Epsilon, V-Prediction, and X0 The prediction objective determines what the reverse process network is trained to predict. Most tutorials skip this, but it directly affects fine-tuning behavior and output stability.
Epsilon: Network predicts the noise that was added. This is the original DDPM formulation, still common in SDXL-era models.X0: Network predicts the fully denoised original image directly from the noisy input.V-prediction: Network predicts a weighted combination of signal and noise. Used in Stable Diffusion 2.x and 3.x for improved stability at high CFG scales.
When fine-tuning any base model, the prediction parameterization of the fine-tuned model must match the base. Mismatched parameterizations are a leading cause of degraded output quality after fine-tuning. Teams that catch this late lose significant iteration cycles. Hyperparameter tuning strategy has to account for this constraint from the start.
Sampler Choice and Inference Economics The same trained model produces different results depending on which sampler runs at inference. Step count varies by 5x across common options, which translates directly to throughput and inference cost. DPM++ 2M Karras at 20 steps matches DDIM quality at 50 steps on SDXL-era models, a 2.5x inference speedup with no perceptual quality loss. For Flux 2 and SD 3.5, the Euler flow-matching sampler replaces this as the default. Sampler selection is an infrastructure economics decision as much as a quality one.
Sampler Steps Best For Production Note DDIM 50 Reproducible output, image-to-image Original ODE solver; baseline for SDXL DPM++ 2M Karras 15-25 SDXL production default Best quality/step ratio for SDXL-era Euler (Flow Matching) 20-30 Flux 2, SD 3.5 Current default for frontier models UniPC 8-15 Real-time applications Fastest convergence in 2026 stack LCM (Latent Consistency) 2-4 Live preview, mobile Requires LCM-LoRA or distilled checkpoint
U-Net Architecture in Diffusion Models: What Changed From the Original U-Net was designed for biomedical image segmentation in 2015. Its encoder-decoder structure processes multiple spatial scales at once, capturing global composition at the compressed bottleneck and preserving local texture detail through skip connections to the decoder.
The diffusion U-Net modifies this significantly for the denoising task. Each modification addresses a specific failure mode, and none of them are arbitrary.
Timestep conditioning: A sinusoidal positional embedding of the current timestep is injected at every resolution level via residual blocks. Without this, the network cannot calibrate denoising strength to the actual noise level present, a basic requirement for any working diffusion model.GroupNorm over BatchNorm: Wu and He (2018) showed in the Group Normalization paper that GroupNorm maintains stable normalization regardless of batch size. Diffusion models train with small batches due to compute cost; BatchNorm degrades in this setting, making GroupNorm a direct enabling condition for practical deep learning at standard compute budgets.Self-attention at lower resolutions: Attention layers are inserted at 16×16 and 8×8 feature maps only. Full self-attention at 64×64 means 4,096 tokens, which is computationally prohibitive. At 16×16, it is 256 tokens, tractable and sufficient for long-range spatial coherence across the image.Residual block internals: Each block follows GroupNorm, SiLU activation, Conv2D, timestep embedding injection, GroupNorm, Dropout, Conv2D, and residual addition. The residual path prevents gradient vanishing over 30 to 40 layer depths and is what makes training large diffusion U-Nets stable.Dual-purpose skip connections: Skip connections preserve fine spatial detail and provide implicit context about what structure should emerge as noise is removed. The decoder compares progressively denoised representations against higher-noise encoder features at each scale, which is why generated images retain sharp local texture alongside global coherence.
Generative AI Tech Stack: What to Know Before You Build
Planning a generative AI tech stack? Learn the key layers – from deep learning frameworks to deployment and monitoring – and what enterprise teams prioritize before they start building.
Learn More
Latent Diffusion Model Architecture: How VAE Compression Made Production Viable Pixel-space diffusion, running denoising steps directly on raw pixel tensors, breaks down economically at production scale. Generating thousands of high-resolution images daily on raw pixel data would require compute budgets that most enterprise teams cannot justify. The latent diffusion model paper by Rombach et al. (2022) solved this with a two-stage approach that is now the standard across every major production model.
The compression pipeline works as follows:
A pre-trained variational autoencoder (VAE) encoder compresses the image into a lower-dimensional latent, typically 64x64x4 instead of 512x512x3 The diffusion network runs its denoising steps entirely in this compressed latent space, not on pixels The VAE decoder maps the final denoised latent back to full pixel-resolution output The result is a 16 to 64 times reduction in compute per step with comparable or better perceptual quality, as shown in the original LDM benchmarks
The VAE is not arbitrary compression. It is trained with a perceptual loss to preserve visually meaningful features, plus a KL divergence term that keeps the latent space continuous and navigable. Teams that swap VAEs between implementations without accounting for latent space structure differences regularly see artifacts and quality degradation. Every major production model from SDXL through Flux 2 and Stable Diffusion 3.5 is a latent diffusion model. For teams evaluating ML model deployment of generative AI, the choice between pixel-space and latent-space diffusion is an infrastructure economics question, not a research one.
The jump from 4 to 16 latent channels in 2024-era models is the most consequential architectural change in recent years. More channels let the VAE preserve high-frequency detail (text legibility, fine textures, small faces) that earlier models compressed away. SDXL runs on approximately 10 GB VRAM at 1024×1024; Flux 2 Dev requires roughly 40 GB (24 GB with FP8 quantization); Flux 2 Klein 9B, released Apache 2.0 in January 2026, runs on approximately 12 GB and produces near-frontier quality on consumer hardware. These figures are approximate and vary by resolution and quantization setting.
Text Conditioning: How Prompts Drive Image Generation The text encoder converts a prompt into the embeddings that drive image generation. The encoder choice determines what kinds of prompts the model can actually follow, and this has changed significantly between 2022 and 2026.
Here is how the three main approaches differ:
CLIP ViT-L/14 (used in SD 1.x): Trained on image-text pairs with a contrastive objective. Handles single-object, high-level concepts well. Limited to 77 tokens and weak on complex multi-clause prompts.T5-XXL (used in SD 3.5, Flux 2): A pure language model encoder. Handles complex syntactic structures, spatial descriptions, and multi-subject prompts far better than CLIP. Transfer learning from large language models is what makes this work, the encoder arrives pre-trained on rich linguistic structure that the diffusion model learns to interpret spatially.MM-DiT joint encoder (SD 3.5, Flux 2): Text and image tokens are processed through the same attention mechanism. Text tokens attend to image tokens and vice versa at every layer. This is what gives frontier models their noticeably better text rendering and complex prompt adherence compared to SDXL.
Cross-attention layers within U-Net models connect text encoder output to spatial generation. At each denoising step, the U-Net’s spatial features become Queries while text embeddings become Keys and Values. Each spatial region selectively attends to semantically relevant text tokens, which is why prompt specificity produces better results at inference. Classifier-free guidance (CFG) , introduced by Ho and Salimans (2022), extends this by training the model with conditioning randomly dropped.
At inference, output extrapolates toward the conditioned prediction and away from an unconditioned baseline. Negative prompting applies the same mechanism with a user-defined negative text embedding to suppress specific concepts. Note that Flux 2 models do not use traditional negative prompts. Quality direction is handled through positive prompt structure instead, which changes brand consistency workflows for teams adopting them. This connects to enterprise security and content governance requirements.
Diffusion Models in AI: What They Are and How They Work
Understand the fundamentals of diffusion models – how forward and reverse diffusion work, key application areas, implementation best practices, and the trade-offs enterprise teams face.
Learn More

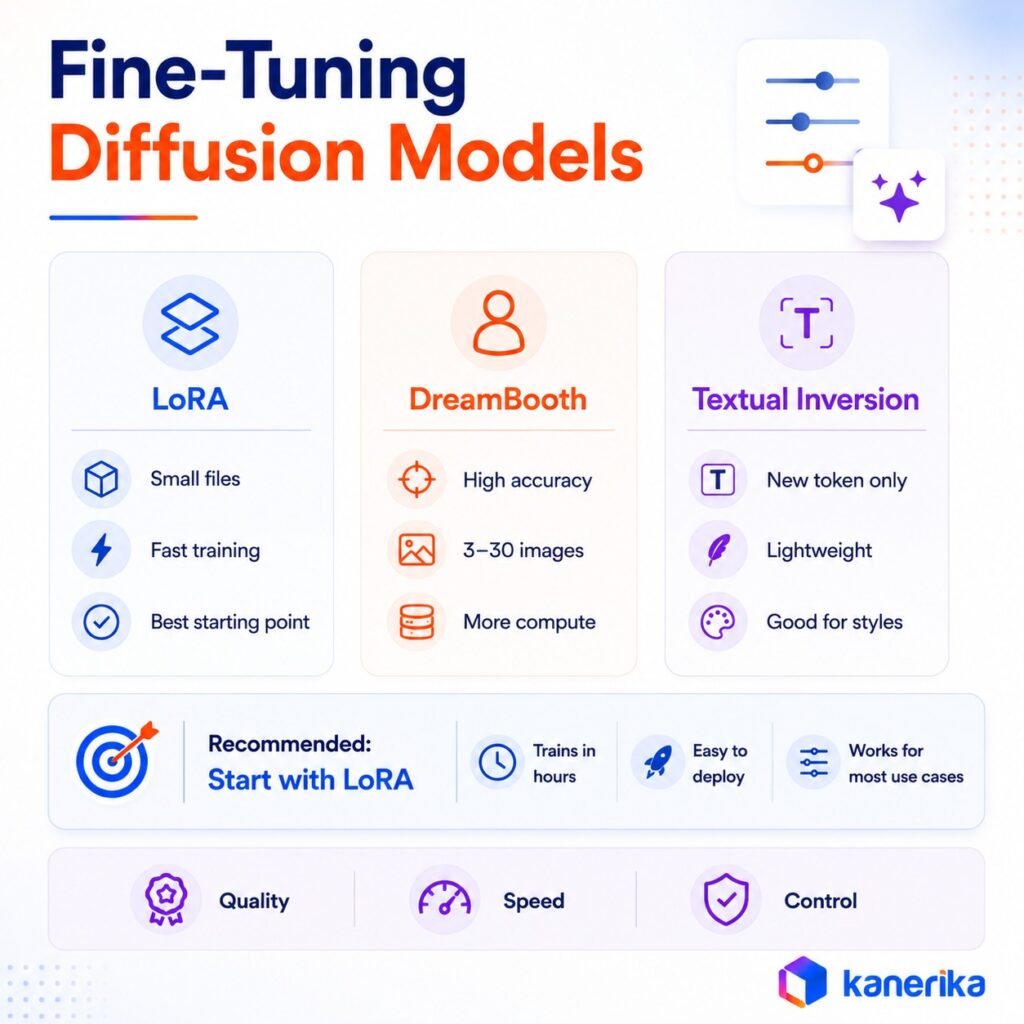

Fine-Tuning Diffusion Models: LoRA, DreamBooth, and Textual Inversion Full fine-tuning of a diffusion backbone is expensive and rarely necessary. Three approaches let teams adapt pre-trained models to new domains efficiently.
LoRA (Low-Rank Adaptation) inserts low-rank weight matrices alongside existing attention weights. The original LoRA paper by Hu et al. (2021) showed this reduces trainable parameters by up to 10,000 times versus full fine-tuning. Output files are 2 to 150 MB, trivial compared to the full model, and can be applied at runtime or merged into base weights. NVIDIA’s developer blog on LoRA for fine-tuning diffusion models documents this as the dominant method for style adaptation and domain-specific image synthesis.
DreamBooth fine-tunes the full backbone on 3 to 30 images using a prior preservation loss to prevent the model from forgetting its general generative capability. The DreamBooth paper by Ruiz et al. (2022) demonstrated subject-specific generation from as few as 3 to 5 reference images. It produces higher identity fidelity than LoRA but requires more compute and produces larger output files. DreamBooth is preferred when precise subject identity matters, whether that is a specific product, person, or brand asset.
Textual Inversion trains only a new token embedding in the text encoder’s vocabulary space, leaving all model weights frozen. It is the lightest intervention, suitable for capturing styles, but less expressive for complex subject preservation.
For most enterprise use cases, including product visualization,, synthetic data generation, brand-consistent content, LoRA at rank 16 to 32 on the cross-attention layers is the right starting point. It trains in hours on a single A100, is lightweight to deploy, and multiple LoRAs can be combined with blended weights at inference. Kanerika’s FLIP AI Workbench supports LoRA-based fine-tuning workflows for enterprise diffusion model deployment, with model provenance tracked through Microsoft Purview governance layers. A comparison of how MLflow vs Hugging Face Hub vs Azure ML handle model versioning is worth reviewing before choosing a registry.
Diffusion Transformer Architecture (DiT): The 2026 Production Standard The U-Net was the default diffusion backbone from 2020 through 2023. It has a scaling limitation: convolutional architectures do not efficiently use additional compute past certain thresholds, which meant that throwing more hardware at U-Net models produced diminishing returns on output quality.
Diffusion Transformers (DiT) , introduced by Peebles and Xie (2022), replace the U-Net entirely with a transformer operating on flattened latent patches. The DiT paper demonstrated that FID scores on ImageNet improved monotonically with compute, a property U-Net architectures do not reliably exhibit. Every major model released in 2024 and 2025 uses a DiT variant. Stable Diffusion 3.5 and the full Flux 2 family both use MM-DiT (multimodal DiT), which processes text and image tokens through the same attention layers.
The backbone decision between U-Net and DiT is now the first architectural fork teams encounter on a new project. The U-Net remains the right call where ControlNet spatial conditioning, broad LoRA ecosystem access, and lower VRAM budgets matter more than raw quality ceiling. DiT is the better choice when maximum generation quality and architectural longevity are the primary goals. Understanding how this interacts with AI agent architecture decisions matters as generative models get embedded into agentic workflows.
Model Released Params License VRAM Enterprise Fit Stable Diffusion 3.5 Medium Oct 2024 2B Community (free under $1M revenue) ~12 GB Low VRAM; good for high-volume Stable Diffusion 3.5 Large Oct 2024 8.1B Community (enterprise license for $1M+) ~18 GB Best SD3.5 quality Flux 2 Dev Nov 2025 32B Open-weight, non-commercial ~40 GB (FP8: ~24 GB) Highest quality; needs commercial license from BFL Flux 2 Klein 4B Jan 2026 4B Apache 2.0 ~8 GB Consumer GPU; sub-second generation Flux 2 Klein 9B Jan 2026 9B Apache 2.0 ~12 GB Best quality-to-VRAM ratio in 2026
For enterprises evaluating production fit, the decision comes down to three profiles. Stable Diffusion 3.5 Medium at 2B parameters runs on 12 GB VRAM and uses the community license free up to $1M annual revenue, making it the practical starting point for most teams. Flux 2 Klein 9B is the strongest Apache 2.0 model available in 2026 and produces near-frontier quality on consumer hardware. Flux 2 Dev delivers the highest quality but requires a commercial license from Black Forest Labs and substantially more VRAM, making it the right choice for teams where output quality is the primary competitive differentiator.
Deploying Diffusion Models in Enterprise Synthetic data generation for computer vision training is one of the most direct enterprise applications of diffusion model architecture. Real defect samples in manufacturing are scarce by definition. Research published as Synthetic Training Data for Defect Detection with Diffusion Models shows that diffusion-generated synthetic defects can meaningfully augment computer vision training datasets without waiting for physical defect occurrence. U-Net with ControlNet architecture is the preferred approach for this use case, as spatial control places generated defects in contextually appropriate locations with controlled geometry. Kanerika’s computer vision deployments combining generative augmentation with production inference have reached 99%+ defect detection accuracy in manufacturing quality control engagements.
Three gaps consistently surface when teams move diffusion models from prototype to production:
Compute cost underestimation: Generating thousands of images daily requires deliberate data infrastructure design, not just spinning up a GPU instanceConditioning engineering: Finding the right text encoder and CFG combination for brand-consistent output requires systematic iteration, not per-prompt tuningGovernance: Output filtering, watermarking, and model provenance tracking are non-negotiable in regulated industries, and this needs to be built in from day one, not added later
On inference speed: DDIM sampling reduces SDXL inference from 1,000 steps to 20 to 50 with near-identical quality. Flow matching samplers for Flux 2 and SD 3.5 converge in 20 to 30 steps natively. Latent Consistency Models distill diffusion models to 4 to 8 steps for near-real-time generation. Kanerika’s data governance framework built on Microsoft Purview for AI governance addresses the governance gap from project start.
How Kanerika Supports Generative AI Deployments Kanerika’s AI and ML practice helps enterprise teams move from diffusion model architecture decisions to production deployment across manufacturing, retail, pharma, and financial services. As a Microsoft Solutions Partner for Data and AI , Kanerika brings governance infrastructure, fine-tuning workflows, and inference optimization into every engagement. Across GenAI deployments, clients have seen up to 65% in cost savings and 95%+ satisfaction scores, with the team working across the same PyTorch and TensorFlow stack that powers modern diffusion systems.
Where most implementations stall is in the gap between a working proof-of-concept and a governed, scalable production system. Kanerika’s approach addresses this through three layers: architecture selection matched to the team’s VRAM budget and quality requirements, LoRA fine-tuning pipelines managed through the FLIP AI Workbench , and model provenance tracking through Microsoft Purview so that every fine-tuned model is auditable back to its training data. For regulated industries, this is not a nice-to-have. It is a baseline requirement.
Evaluating where your organization stands on generative AI readiness? Kanerika’s AI Readiness Assessment benchmarks AI/ML foundations, GenAI readiness, and agent deployment capability, with a clear picture of what needs to be in place before a diffusion model pilot can realistically scale. Teams that use it before starting development avoid the most common production failures. Book a demo with Kanerika to discuss your specific use case.
Transform Your Business with AI-Powered Solutions! Partner with Kanerika for Expert AI implementation Services
Book a Meeting
Case Study: Generative AI in Practice for A Real-World Reporting Transformation The client is a leading conglomerate with a global presence and diversified operations across the electrical, automobile, construction, and FMCG sectors. Naturally, they recognize the need to leverage advanced technologies to automate data analysis and unlock valuable insights. They aim to enhance business performance reporting, enable agile decision-making, and identify growth opportunities for better business outcomes.
Challenges Manual analysis of unstructured and qualitative data was prone to bias and unable to capture underlying trends Lack of automated tools hindered the extraction of valuable insights from diverse data sources Inability to integrate qualitative data with structured data limited the comprehensive analysis necessary for reporting
Solutions Deployed a generative AI for reporting solution using NLP, ML, and sentiment analysis models to process and analyze data Automated data collection and text analysis to extract insights from unstructured sources like market reports and industry analysis Integrated the new platform with structured data sources and provided user-friendly reporting and visual interfaces
Results 30% Increase in accurate decision-making 37% Increase in identifying customer needs 55% Less manual effort for analysis
Conclusion Diffusion model architecture is a stack of interconnected decisions: noise scheduler type, prediction objective, U-Net versus DiT backbone, latent versus pixel-space diffusion, text encoder selection, conditioning mechanism, CFG scale, fine-tuning approach, and inference sampler. Each choice cascades into production outcomes around quality, speed, cost, and controllability.
The 2026 production stack looks different from 2023. Flux 2 and Stable Diffusion 3.5 have replaced SDXL as the frontier architecture choices for teams prioritizing output quality. Flow matching has replaced the cosine scheduler as the standard in frontier models. MM-DiT has replaced the cross-attention U-Net as the dominant backbone. SDXL and its LoRA ecosystem remain useful for workflows requiring ControlNet spatial conditioning, broad community tooling, or lower VRAM budgets.
Treating these as engineering decisions with known tradeoffs, rather than marketing claims, is what separates teams that deploy successfully from teams that stall. Book a demo with Kanerika to discuss your specific use case.
FAQs What Is Diffusion Model Architecture and How Does It Work? A diffusion model architecture has two components: a fixed forward process that adds Gaussian noise across timesteps until data is fully corrupted, and a learned reverse process (typically a U-Net or Diffusion Transformer) that iteratively removes noise to generate new data. All architectural complexity lives in the reverse process, including the noise scheduler, prediction objective, conditioning mechanisms, and backbone design. The DDPM framework introduced by Ho et al. (2020) is the mathematical foundation underlying most production diffusion systems.
Why Do Diffusion Models Use U-Net Architecture? U-Net’s encoder-decoder design processes images at multiple spatial scales simultaneously, preserving global structure at the compressed bottleneck while maintaining local detail through skip connections. It is well-suited for timestep conditioning injection at every resolution level. Self-attention layers at lower resolutions add long-range spatial coherence. As of 2024 to 2026, Diffusion Transformers (DiT) have largely replaced U-Net in frontier models, though U-Net remains standard for workflows requiring ControlNet spatial conditioning.
What Is a Latent Diffusion Model? A latent diffusion model performs all diffusion steps in compressed latent space rather than on raw pixels. A pre-trained VAE compresses the image; the diffusion network adds and removes noise in this compressed space; the VAE decoder reconstructs full pixel-resolution output. This reduces compute 16 to 64 times versus pixel-space diffusion, as shown in the original LDM paper. All major production models, SDXL, Stable Diffusion 3.5, and Flux 2, use latent diffusion.
What Is a Diffusion Transformer (DiT) and How Does It Differ From U-Net? The DiT architecture replaces the U-Net with a transformer operating on flattened latent patches. Conditioning uses adaptive layer normalization rather than cross-attention injection. DiT scales more efficiently with compute and underlies Stable Diffusion 3.5, Flux 2, and video generation systems. U-Net retains advantages in ControlNet spatial control and inference efficiency on lower VRAM hardware.
What Is Flux 2 and How Does It Differ From SDXL? Black Forest Labs released Flux 2 in November 2025. It is a 32-billion parameter rectified flow transformer model integrated with a Mistral-3 24B vision-language model. It generates images up to 4 megapixels with substantially better text rendering, prompt adherence, and character consistency than SDXL. SDXL uses a 2.6B parameter dual U-Net with dual CLIP encoders; Flux 2 uses a DiT with T5-XXL plus CLIP-L encoders and the MM-DiT joint attention pattern. SDXL retains the larger LoRA and ControlNet ecosystem.
What Is Classifier-Free Guidance (CFG)? Classifier-free guidance trains the diffusion model with conditioning randomly dropped. At inference, output extrapolates toward the conditioned prediction and away from an unconditioned baseline. Higher CFG scale increases prompt adherence but can introduce saturation at very high values. Flux 2 models do not use traditional CFG with negative prompts. Quality direction is incorporated into the positive prompt structure instead.
What Is the Difference Between Epsilon-Prediction, V-Prediction, and X0-Prediction? Epsilon-prediction (original DDPM) trains the network to predict the noise added at each step. X0-prediction trains the network to predict the fully denoised original image directly. V-prediction trains the network to predict a weighted combination of signal and noise, used in Stable Diffusion 2.x and 3.x for improved stability at high noise levels. When fine-tuning, the prediction parameterization must match the base model to avoid quality degradation.
How Do LoRA and DreamBooth Fine-Tune Diffusion Models? LoRA fine-tuning inserts small low-rank weight matrices alongside U-Net or DiT attention weights, training only these while base weights stay frozen. Output files are 2 to 150 MB. DreamBooth fine-tunes the full backbone on 3 to 30 images using prior preservation loss. LoRA is preferred for style adaptation and domain-specific synthesis at scale; DreamBooth is preferred for high-fidelity subject identity preservation.
