Power BI continues to expand its visualization capabilities, and one of the recent improvements is the ability to customize line segment colors in charts. As one of the most widely used business intelligence platforms, Power BI now supports over 30 million monthly active users and more than 100,000 organizations worldwide, with 97% of Fortune 500 companies using the platform for data analysis and reporting.
Microsoft regularly releases updates that enhance both functionality and user experience, helping analysts build clearer and more effective dashboards. One of the latest additions allows users to highlight specific sections of a line chart by assigning different colors to individual segments. This makes trends easier to interpret and improves the overall readability of Power BI reports.
Key Takeaways You can customize line segment colors by assigning different colors to specific parts of a line chart instead of using a single color for the entire line. Power BI Desktop includes this feature in the Format Pane under the Lines section, so you do not need additional plugins or preview settings. You can customize both the line color and the shaded area below the line for individual segments, giving you greater control over how your chart appears. Power BI applies formatting per category through the “Apply settings to” dropdown, allowing you to target specific brands, segments, or data points independently. This feature currently has some limitations because it does not support conditional formatting, gradient colors, or automatic updates when data changes, so you must apply all styling manually.
What Does Customizing Line Segment Colors in Charts Mean in Power BI? Customizing line segment colors in charts means assigning different colors to specific parts of a line in a line chart instead of using one color for the entire line. In a typical line chart, the line appears in a single color that represents the entire dataset. While this works for showing trends, it can make it harder to highlight specific data points or sections that require attention.
With segment color customization, you can change the color of individual parts of the line based on categories or data points. This makes it easier to identify important sections of the trend and quickly spot changes or patterns. As a result, charts become clearer and more effective for presenting insights in reports and dashboards.
Example Imagine a line chart showing sales performance across different product brands. Normally, the entire line might appear in a single color, such as blue. With customized line segment colors, the chart could look like this:
This visual distinction helps viewers quickly identify which chart sections correspond to specific categories or points in the dataset.
Why Customizing Line Segment Colors Is Useful Using different colors for line segments provides several advantages when working with analytical reports:
Highlight important data points: Specific segments can be colored differently to draw attention to key values or categories. Improve chart readability: When segments are visually separated, users can interpret the chart more quickly. Support better storytelling with data: Colors help guide the viewer’s attention to meaningful parts of the trend. Reduce reliance on extra visuals: Instead of adding multiple charts or markers, a single line chart can communicate more information through segment coloring.
Overall, customizing line segment colors helps transform a simple line chart into a more expressive and informative visualization, allowing analysts to present insights more clearly within Power BI reports.
Where to Find the Feature in Power BI The new version of Power BI Desktop allows users to customize line segment colors directly within the line chart visual. Power BI includes this feature by default, so users do not need to enable preview settings or install anything additional. Once you update Power BI Desktop, you can access the option automatically.
You can access this feature through the formatting options of a line chart. Power BI allows you to select specific data points or categories and apply color formatting to those segments. This makes it easier to highlight important parts of the chart without changing the entire line.
Steps to Access the Feature Add or select a line chart visual in your Power BI report. Open the Format Pane from the right-side panel. Navigate to the Lines section in the formatting options. Use the “Apply settings to” dropdown to select a specific category or segment. Choose a color or adjust transparency for that segment.
By selecting different categories from the dropdown, you can assign different colors to multiple segments within the same line chart. This helps make the visual clearer and easier to understand.
Dataset Setup for Customizing Line Segment Colors in Power BI Charts To demonstrate how to customize line segment colors in charts, a sample Power BI dataset is used. The dataset contains multiple related tables that represent a typical business data model. Using a structured dataset helps illustrate how the feature works in a real reporting scenario.
The model follows a star schema structure, which is commonly used in Power BI for building efficient reports and dashboards. It includes a central fact table connected to several dimension tables.
Tables Included in the Model Sales table – Contains transaction data and sales values. Item table – Stores product or brand information used in the chart. Customer table – Includes customer-related details. Geography table – Provides location-based data for analysis. Date table – Helps analyze trends across different time periods.
The dataset also includes several pre-created measures, which makes it easier to build visuals and demonstrate formatting features such as segment color customization in line charts.
Modernize Your Analytics Stack with Microsoft Fabric Learn how Microsoft Fabric helps organizations unify data, enable real-time insights, and build scalable analytics platforms for modern enterprises.
Read Our Whitepaper
Step-by-Step: How to Customize Line Segment Colors in Charts in Power BI Now that the dataset and visuals are ready, the next step is to customize line segment colors in charts. Power BI allows you to apply different colors to individual segments of a line chart by selecting specific categories within the formatting options. This helps highlight certain parts of the trend and makes the visual easier to interpret.
Below is a simple process to apply segment-level color formatting in a Power BI line chart .
Step 1: Create a New Report Page Start by opening your Power BI report and adding a new page where the chart will be created.
Click the New Page button at the bottom of the report. Ensure the Build Pane and Format Pane are visible on the right side.
These panels allow you to add fields and adjust formatting options.

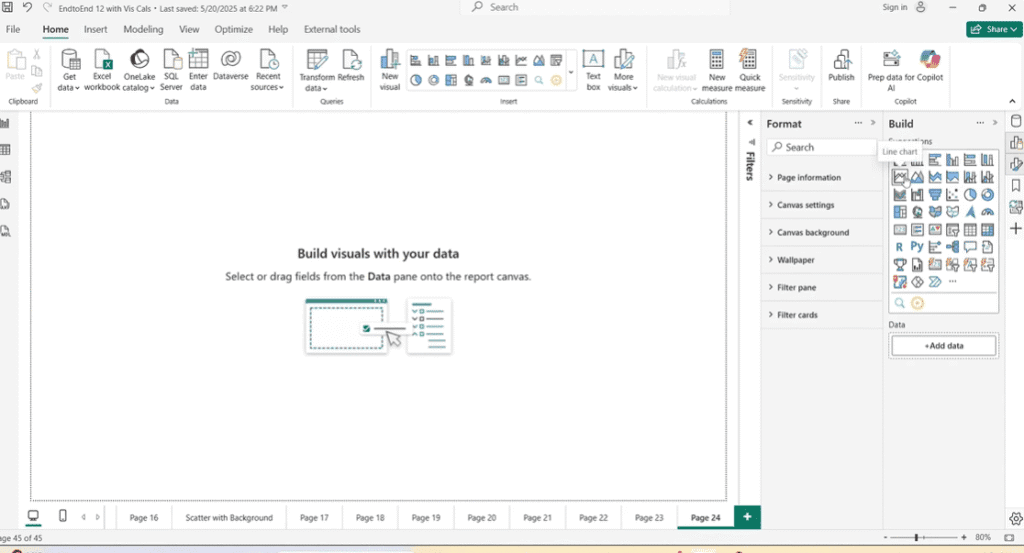

Step 2: Insert a Line Chart Next, add a line chart visual to the report page.
Select the Line Chart visual from the visualization panel. Resize the visual so the chart is clearly visible.
This will be the visual where the segment colors will be applied.

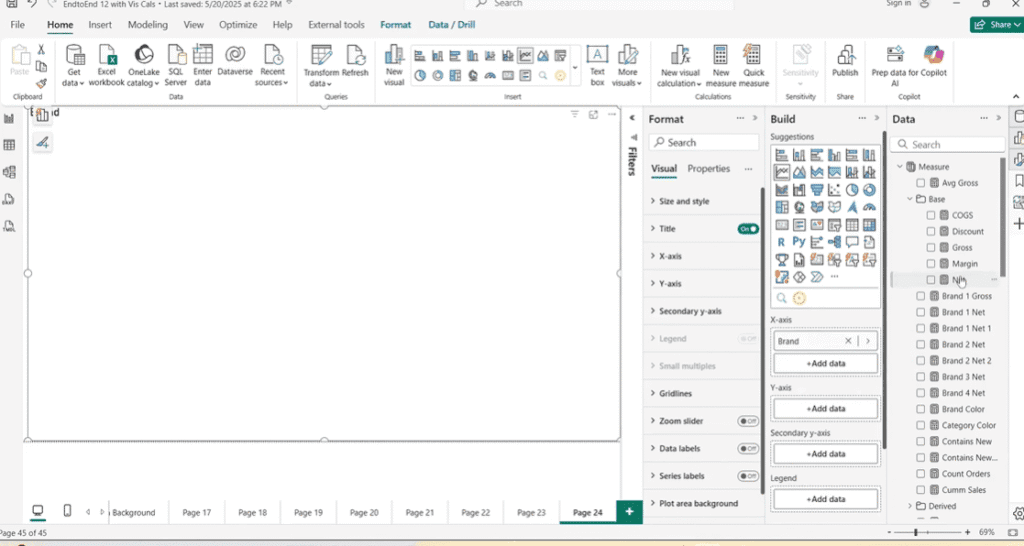

Step 3: Add Data Fields Once the chart is added, assign fields to build the visual.
Add Brand from the Item table to the X-axis . Add the Net measure to the Y-axis .
This setup creates a line chart that displays values across different brands.

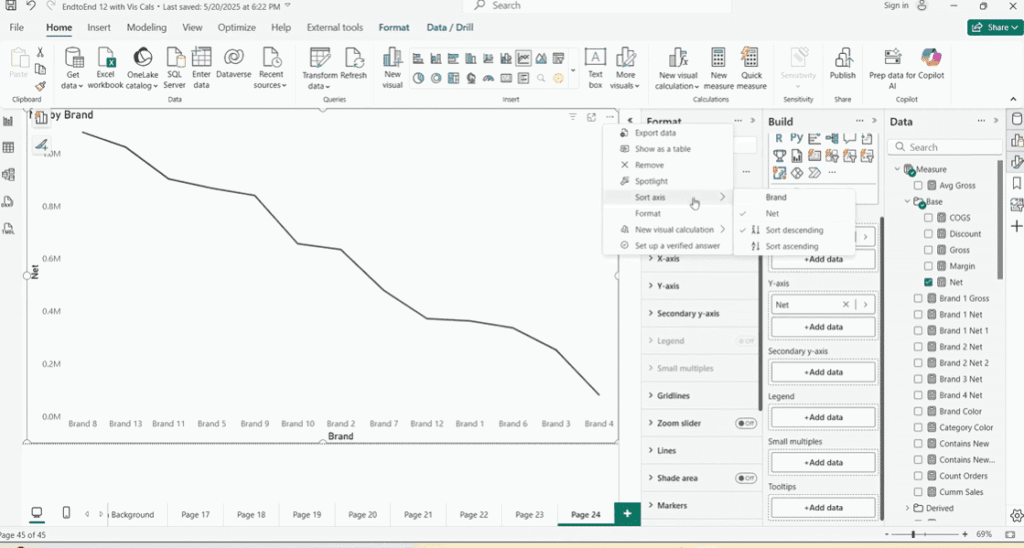

Step 4: Adjust Chart Sorting To make the segment colors easier to observe, change the sorting of the chart.
Click the three-dot menu in the top-right corner of the visual. Select Sort by Brand instead of the default measure.
Sorting by category helps clearly identify which segments belong to each brand before applying custom colors.

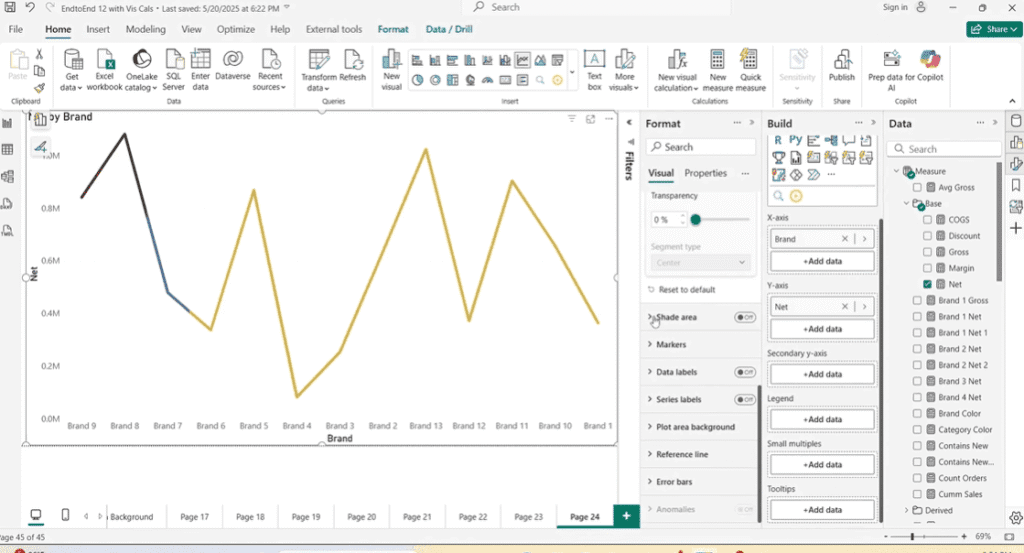

Apply Different Colors to Individual Line Segments Once the default line settings are configured, you can begin applying custom colors to specific segments of the line chart. This allows you to highlight particular categories or sections within the visual without affecting the entire line.
Power BI allows this formatting through the Lines section in the Format Pane, where you can choose individual categories and apply color changes directly to those segments.
Steps to Apply Colors to Line Segments 1. Select the line chart visual Click on the line chart so that formatting options become available.
2. Open the Lines formatting section Go to the Format Pane and locate the Lines section , which contains styling options for the line.
3. Choose a specific category to format Use the “Apply settings to” dropdown to select the category you want to format.
4. Change the segment color After selecting a category, choose a new color from the color selector. The selected line segment will update immediately.
5. Repeat the process for other segments You can continue selecting different categories and apply different colors to each segment.
Example If your chart shows sales values by brand, you might apply colors like this:
Brand N → Red to highlight an important category Brand 8 → Green to differentiate another segment Brand 7 → Blue to visually separate another part of the trend
Applying different colors helps viewers quickly identify where changes occur within the chart.

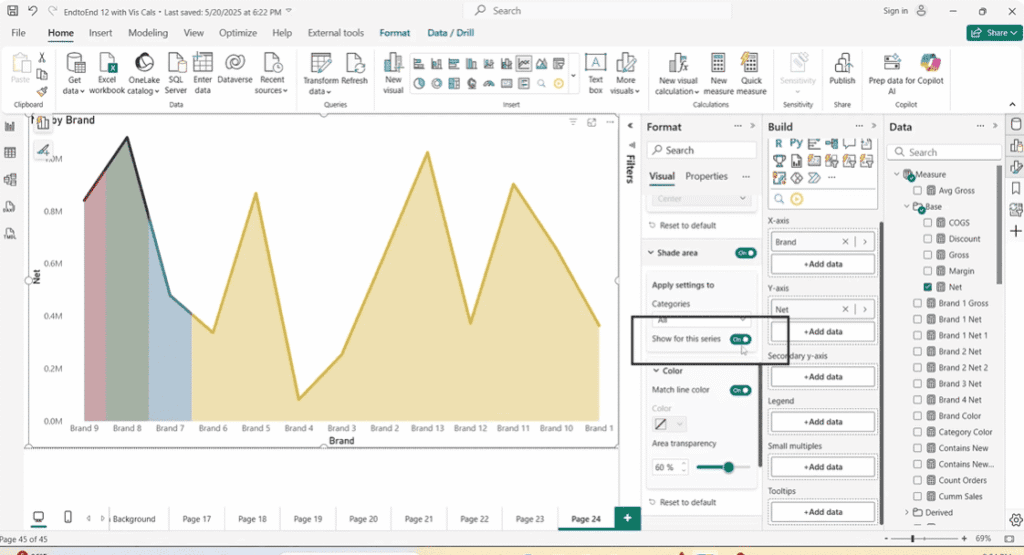

Customize the Shaded Area for Line Segments In addition to changing the line color, Power BI also allows you to control the shaded area below the line. By adjusting the transparency of this shaded region, you can emphasize certain segments and make the chart easier to interpret.
The shaded area works together with line color formatting, giving you additional control over how different sections of the chart appear.
Steps to Adjust the Shaded Area Enable the shaded area option: Go to the Format Pane and locate the Shaded area setting under the line chart formatting options. Turn this option on to display color below the line. Adjust transparency for all categories first: When All categories is selected, increase the transparency to remove the default shading. Select individual categories: Use the Apply settings to dropdown to choose specific segments. Change the transparency level: Reduce the transparency value for selected categories to make shading visible.
Example For instance, you might apply transparency levels like this:
Brand 9 → 0% transparency (fully visible shading) Brand 8 → 50% transparency (moderate shading) Brand 7 → 75% transparency (light shading)
By adjusting both line colors and shaded area transparency, you can create a clearer and more informative line chart.
Limitations of Customizing Line Segment Colors in Charts Although customizing line segment colors adds flexibility to line charts, the feature still has some limitations. Most formatting options are currently manual, and some advanced styling capabilities are not yet available.
Understanding these limitations helps when planning how to use this feature in Power BI reports.
Line Segment Color Limitations No conditional formatting support yet: Segment colors cannot currently be driven by rules, measures, or field values. For example, you cannot automatically change the line color when sales exceed a certain value or when performance drops below a threshold. No gradient-based color transitions: Gradient color effects along the line are not supported. Each segment must use a single solid color. No rule-based formatting logic: You cannot create rules such as changing the line color when values increase or decrease. Limited automation when data updates: Since formatting is static, colors do not automatically adjust when the dataset changes. Partner with Kanerika to Modernize Your Enterprise Operations with High-Impact Data & AI Solutions Call or Text Us Now
Shaded Area Limitations No independent color control for shaded areas: Power BI does not allow a separate color to be assigned specifically for the shaded region below the line. Transparency must be adjusted manually: If different shading levels are required across segments, transparency must be configured individually. Limited styling options: The shaded region mainly supports transparency adjustments and does not currently support gradients or advanced fill styling.
